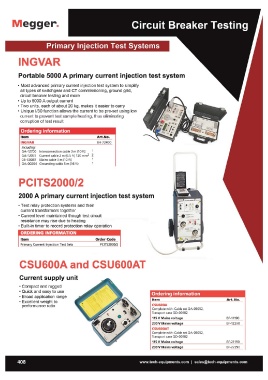

Primary Injection Test Systems

INGVAR

Portable 5000 A primary current injection test system

• Most advanced primary current injection test system to simplify
all types of switchgear and CT commissioning , ground grid ,
circuit breaker testing and more

• Up to 5000 A output current
• Two units , each of about 20 kg, makes it easier to carry
• Unique 1/30 function allows the current to be pre-set using low

current to prevent test sample heating , thus eliminating
corruption of test result

Ordering information

Item Art.No.

INGVAR BH-72490

In cluding:

GA-12700 Interconnection ca ble 3 m (10ft)
GA-120S1 Current cable 2 m (6.S ft) 120 mm2 2

04-0 0087 Mains cable 3 m (10 ft)

GA-00204 Grounding cable S m (16 ft)

PCITS2000/2

2000 A primary current injection test system

• Test relay protection systems and their
current transformers together

• Current level maintained though test circuit
resistance may rise due to heating

• Built-in timer to record protection relay operation

Item
Primary Current Injection Test Sets

CSU600A and CSU600AT

Current supply unit Ordering information Art. No.

• Compact and rugged Item BF-11190
• Quick and easy to use BF-12290
• Broad application range CSU600A
• Excellent weight to Complete with : Cable set GA-OSO S2, BF-21190
Transport case GD -00182 BF-22290
performance ratio
115 V Mains voltage

230 V Main s voltage

CSU600AT
Complete with : Cable set GA-OSOS2,
Transport case GD -00182

115 V Mains voltage

230 V Mains voltage
