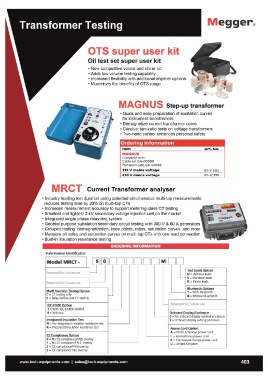

P. 409
M eggerm
OTS super user kit
Oil test set super user kit
• New competitive vessel and stirrer kit.
• Adds low volume testing capability.
• Increased flexibility with additional impeller options.
• Maximises the benefits of OTS range.
MAGN US Step-up transformer
• Quick and easy preparation of excitation curves
for instrument transformers
• Demagnetize current transformer cores
• Conduct turn-ratio tests on voltage transformers
• Two-hand control enhances personal safety
Ordering information Art. No.
Item 8T·11190
8T·12390
MAGNUS
Complete with:
Cable set GA-00090
Transport case GD-00182
115 V mains voltage
230 V mains voltage
MRCT Current Transformer analyser
• Industry leading test duration using patented simultaneous multi-tap measurements
reduces testing time by 20% on multi-tap CTs
• Increased measurement accuracy to support metering class CT testing
• Smallest and lightest 2 kV secondary voltage injection unit on the market
• Integrated single phase relay test system
• General purpose substation secondary circuit testing with 300 V & 60 A generators
• Grouped testing: demagnetization, knee points, ratios, saturation curves, and more
• Measure all ratios and saturation curves on multi-tap CTs with one lead connection
• Built-in insulation resistance testing
ORDERING INFORMATION
Style Number Identification LM T~".,d,0".,
N = Without leads
Model MRCT- I 1 5 11 0 II II I S = Standard leads
K = Kelvin leads
Reserved for future use ~
I!luetQQth QlltiQDS
Reserved for future use 1 = With Bluetooth
Multi Function Testing Clition t-- o = Without Bluetooth
C = (T testing only
R = Relay testing and (T testing '-- Reserved for future use
IEC 61850 Clition Cnboard Disllla~/Enciosure
1 = With IEC 61850 GOOSE
o = No onboard display wfsmall enclosure
o= Without
2 = Onboa rd display wflong enclosure
Integrated Insulation Test
N = No integrated insulation resistance test Power Cord Clition
R = Integrated insulation resistance test A = North American power cord
I = International power cord
CE COmllli;!nce Clition E = Continental Eu rope power cord
0= No (E compliance/ANSI overlay U = United Kingdom
1 = No CE compliance !IEC overlay
2 = CE compliance/ANSI overlay
3 = CE compliance flEC overlay
www.tech-equipments.comlsales@tech-equipments.com 403
