M eggerm

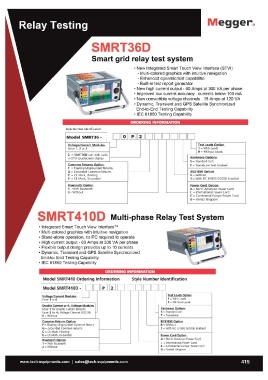

SMRT36D
Smart grid relay test system
• New Integrated Smart Touch View Interface (STVI)
- Multi-colored graphics with intuitive navigation
- Enhanced dynamic test capabilitie
- Built-in test report generator
• New high current output - 60 Amps at 300 VA per phase
• Improved low current accuracy. currents below 100 mA
• New convertible voltage channels. 15 Amps at 120 VA
• Dynamic, Transient and GPS Satellite Synchronized
End-to-End Testing Capability
• IEC 61850 Testing Capability
ORDERING INFORMATION
Style Number Identification
Model SMRT36 -
Voltage/Current Modules Test Leads Opt ion
Enter 1, 2 or 3 1 = With Leads
2 = SMRT36D unit wit h built- o = Without Leads
in SlYl touchscreen display 1 - - - - - - - - - - '
Hardware Options
Common Returns Option S = Standard Unit
F = Floating Ungrounded Returns T = Transducer Test Enabled
G = Grounded Common Returns
C = CE Mark, Floating IEC618S0 Option
E = CE Mark, Grounded '---------l 0 = Without
Bluetooth Option 1 = With IEC 61850 GOOSE Enabled
1 - With Bluetooth
0 - Without Power Cord Option
A = North American Power Cord
'-----------l I = International Power Cord
E = Continental Europe Power Cord
U = United Kingdom
5 MRT41 0D Multi-phase Relay Test System
• Integrated Smart Touch View Interface ™
• Multi-colored graphics with intuitive navigation
• Stand-alone operation, no PC required to operate
• High current output - 60 Amps at 300 VA per phase
• Flexible output design provides up to 10 currents
• Dynamic, Transient and GPS Satellite Synchronized
End-to- End Testing Capability
• IEC 61850 Testing Capability
ORDERING INFORMATION
Model SMRT410 Ordering Information Style Number Identification
I IIModel SMRT410D- I[f] [i] Test Leads Olltion
1 = With Leads
VoltagelCummt Module5 U
Enter 3 or 4 o= Without Leads
Double Current or !b. Voltage Modu les Hardware Opt ions
Enter 1 for Double Current (DIG EN) S = Standard unit
Enter 2 for 4.. Voltage Channel (VGEN) T = Transducer
0= Without
IEC61850 OPtion
CQmmcm Belu[[lS Qpticm 0 = Without
F = Float ing Ungrounded Common Return 1 = With IEC 61850 GOOSE Enabled
G = Grounded Common Retu rn s
C = CE Mark, Float ing Power Cord Olltion
E = CE Mark, Grounded A = North American Power Cord
'----------1 I = International Power Cord
Bluet ooth Olltion E = Continental Europe Power Cord
1 = With Bluetooth U = United Kingdom
2 = Without
www.tech-equipments.comlsales@tech-equipments.com 415
