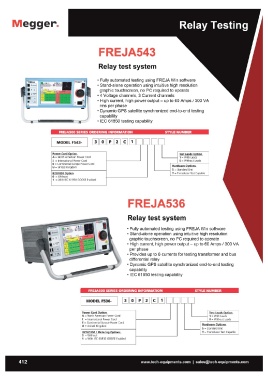

Page 418 - techequipmentscatalogue2016

ggerm

FREJA543

Relay test system

• Fully automated testing using FREJA Win software
• Stand-alone operation using intuitive high resolution

graphic touchscreen , no PC required to operate
• 4 Voltage channels , 3 Current channels
• High current, high power output - up to 60 Amps / 300 VA

rms per phase
• Dynamic GPS satellite synchronized end-to-end testing

capability
• IEC 61850 testing capability

FREJA500 SERIES ORDERING INFORMATION STYLE NUMBER

MODEL F543- [!][!][!][!]~[!] Test leads Option

II 1 - - - - 1 1 = With Leads

Power Cord ORtion o = Without Leads
A = North American Power Cord
I = International Power Cord T = Transducer Test Capable
E = Continental Europe Power Cord
U = United Kingdom

IEC61850 ORtion

o = Without

1 = With IEC 61850 GOOSE Enabled

FREJA536

Relay test system

• Fully automated testing using FREJA Win software
• Stand-alone operation using intuitive high resolution

graphic touchscreen , no PC required to operate
• High current, high power output - up to 60 Amps / 300 VA

per phase
• Provides up to 6 currents for testing transformer and bus

differential relay
• Dynamic GPS satellite synchronized end-to-end testing

capability
• IEC 61850 testing capability

FREJA500 SERIES ORDERING INFORMATION STYLE NUMBER

MODEL F536- [!][!][!][!]~[!] Test Leads ORtion

II 1 - - --1 1 = With Leads

~Qwe[ C~ud QgtiQD o = W ithout Leads
A = North American Power Cord
I = Internat ional Power Cord T = Transducer Test Capable
E = Cont inental Euro pe Power Cord
U = United Kingdom

IEC161850 l M et~uiD9 QpthJD5

o = W ithout

1 = With IEC 61850 GOOSE Enabled
