M eggerm

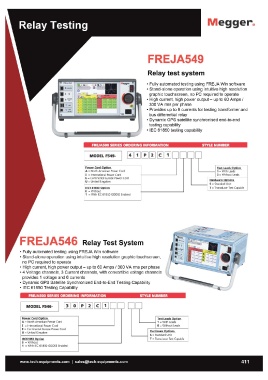

FREJA549

Relay test system

• Fully automated testing using FREJA Win software
• Stand-alone operation using intuitive high resolution

graphic touchscreen, no PC required to operate
• High current, high power output - up to 60 Amps /

300 VA rms per phase
• Provides up to 9 currents for testing transformer and

bus differential relay
• Dynamic GPS satellite synchronised end-to-end

testing capability
• IEC 61850 testing capability

FREJA500 SERIES ORDERING INFORMATION STYLE NUMBER

MODEL F549- 0[TI~[!]~[TI 1 II I

II

Power Cord Olltion Test Leads Olltion

A = North American Power Cord =' - - - --I 1 With Leads
I = International Power Cord o=Without Leads
E = Continental Europe Power Cord
U = United Kingdom '--_ _-I 5 = Standard Unit
T = Transducer Test Capable
IEC] -!i] 850 Olltio!l

o =Without

1 = With IEC 61850 GOOSE Enabled

FREJA546 Relay Test System

• Fully automated testing using FREJA Win software
• Stand-alone operation using intuitive high resolution graphic touchscreen,

no PC required to operate
• High current, high power output - up to 60 Amps / 300 VA rms per phase
·4 Voltage channels, 3 Current channels, with convertible voltage channels

provides 1 voltage and 6 currents
• Dynamic GPS Satellite Synchronized End-to-End Testing Capability
• IEC 61850 Testing Capability

FREJA500 SERIES ORDERING INFORMATION STYLE NUMBER

MODEL F546- 0~[!]~~[I] I II I

II

Power Cord Olltion I Test Leads Optio!l
1 =With Leads
A = North American Power Cord
I 0 =Without Leads
I = Internationa l Power Cord
E = Continental Europe Power Cord t!ilr!!wilre QlltiQn5

U = United Kingdom 5 = Standard Unit
T =Transducer Test Capable
IEC61850 Olltion

o =Without
1 =With IEC 61850 GOOSE Enabled
