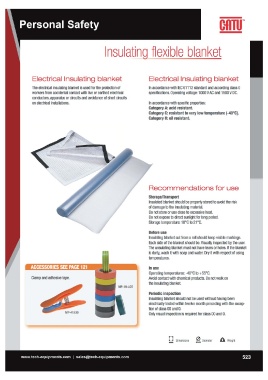

Page 529 - techequipmentscatalogue2016
P. 529
ulating flexible blanket
Electrical Insulating blanket Electrical Insulating blanket
The electrical insulating blanket is used for the protection of In accordance with IEC 61112 standard and according class 0
workers from accidental contact with live or earthed electrical specifications. Operating voltage: 1000 VAC and 1500 VDC.
conductors, apparatus or circuits and avoidance of short circuits
on electrical installations. In accordance with specific properties:
Category A: acid resistant.
Category C: resistant to very low temperature (-40°C).
Category H: oil resistant.
Recommendations for use
StoragelTransport
Insulated blanket should be properly stored to avoid the risk
of damage to the insulating material.
Do not store or use close to excessive heat.
Do not expose to direct sunlight for long period.
Storage temperature: 1DoC to 21°C.
Before use
Insulating blanket cut from a roll should keep visible markings.
Each side of the blanket should be.Visually inspected by the user.
The unsulating blanket must not have tears or holes. If the blanket
is durty,wash it with soap and water. Dry it with respect of using
temperatures.
In use
Operating temperatures: -40°C to +55°C.
Avoid contact with chemical products. Do not walk on
the insulating blanket.
Periodic inspection
Insulating blanket should not be used without having been
electrically tested within twelve month preceding with the excep-
tion of class 00 and O.
Only visual inspection is required for class 00 and O.
g Dimensions ~ Diameter A Weight
www.tech-equipments.comlsales@tech-equipments.com 523
