P. 532

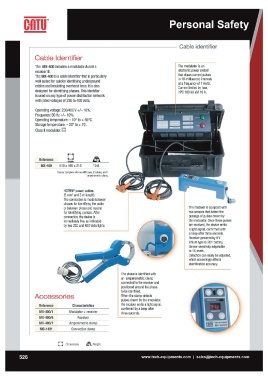

, - - - - - - - - - - - - - - - - - - - - - - - Cable identifier
Cable Identifier The modulator is an
electronic power system
The MX-400 includes a modulator A and a that draws current pulses
receiver B. in 1O-millisecond intervals
The MX-400 is acable identifier that is particularly at afrequency of 1 Hertz.
well suited for quickly identifying underground Current limited by fuse,
cables and insulating overhead lines.It is also HPC 100 kA aM l OA.
designed for identifying phases.This identifier
is used on any type of power distributionnetwork
with rated voltages of 230 to 400 Volts.
Operating voltage: 230/400 V+/-1 0%.
Frequency:50 Hz +/- 10%.
Operating temperature: - 10° to + 55°C.
Storage temperature:- 20° to + 70 .
Class II modulator. [Q]
Reference o 10.6
MX-400
mm
510 x 465 x 216
Comes completev~th an ASS case, 2 cables, and1
amperemetric clamp.
H07RNF power cables. The receiver is equipped with
(6 mm2 and 3 mlength). two sensors that detect the
The connection is made between passage of pulses drawnby
phases for identifying the cable the modulator. Once these pulses
or betweenphase and neutral are received, thedevice emits
for identifying a phase.After a light Signal, confirmed with
connection, the device is a beep after three seconds.
immediately live, as indicated Receiver powered by 9V
by two 230 and 400 Volts lights. lithium type 6LR61 battery.
Sensor sensitivity adjustable
to 15 levels.
Detection caneasily be adjusted,
whichaccordingly affects
ide ntification accuracy.
Accessories The phase is identified with
an amperemetric clamp
Reference Characteristics connected tothe receiver and
positioned around the phase
MX-400/1 Modulator + receiver to be identified.
When the clamp detects
pulses drawn by the modulator,
the receiver emits a light signal,
confirmed by a beep after
three seconds.
MX-400_/6___________R~e~ce~iv~e_r ________
MX-4OOI7 Arnperemetric clamp
MC-1421 Connection clamp
o Dimensions & Weight
526 www.tech-equipments.comlsales@tech-equipments.com
