. - - - - - - - - - - - - - - - - - - - - - - - Substation equipment

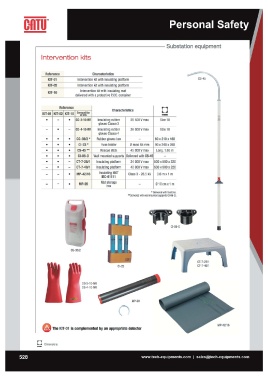

Intervention kits

Reference Characteristics
KIT-01 Intervention kit with insulating platform
KIT-02
Intervention kit with insulating platform
KIT-10 Intervention kit with insulating mat

delivered with a protective P.V.C. container

Reference Characteristics 0 ..,
K1T-01 K1T-02 K1T-10 Com~on
mm e~.:.

• CG-3-10-NR Insulating rubber 26500Vmax Size 10

gloves Classe 3

• CG-4-10-NR Insulating rubber 36 000 Vmax Size 10

gloves Classe 4

• • • CG-3512 * Rubber gloves box 60 x 210 x 460

• • • CI-23 * Fuse holder omaxi 85 mm 90 x 240 x 260

• • • CS-45** Rescue stick 45 000 Vmax Long. 1.65 m

• • • CI-06-0 Wall mounted supports Delivered with CS-45

•• CT-7-2511 Insulating platform 24 000 Vmax 500 x 500 x 220
• CT-7-4011 Insulating platform 40 000 Vmax 500 x 500 x 220

• MP-42116 Insulating MAT Class 3 - 26.5 kV 0.6 mx 1 m
IEC-61111

• MP-20 Mat storage 010cmx1 m
box

* Delivered witll fixations.
" Delivered with wall mounted supports CI-06-D.

CG-35/2 CI-06-D •

CG-3-10-NR , CT-7-2511
CG-4-10-NR CT-7-40/1
CI-23

528 W The KIT-01 is complemented by an appropriate detector

omm Dimensions
