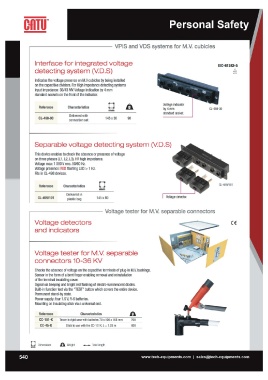

VPIS and VDS systems for M.V. cubicles

Interface for integrated voltage EIC-61243-5
detecting system (V.D.S)
f±

Indicates the voltage presence on M.Vcubicles by being installed
on the capacitive dividers.For High impedance detecting systems
Input impedance: 36/43 MV.Voltage indication by 4 mm
standard sockets on the front of the indicator.

Reference Characteristics 0 A Voltage indicator CL-498-00

CL-498~ Delivered with mm 90 by4 mm
connection set 146 x 30
standard socket.

Separable voltage detecting system (V.D.S)

This device enables to check the absence or presence of voltage
on three phases (l1 I L2, L3). HR high impedance.
Voltage max: 1 080 Vnms.50/60 Hz.
Voltage presence: RED flashing LED> 1 Hz.
Fits in CL-498 devices.

Reference Characteristics o CL-499/101
CL-499/101
Delivered in mm
plastic bag 145 x 80

, . . . - - - - - - - - - - - - Voltage tester for M.V. separable connectors CE

Voltage detectors
and indicators

Voltage tester for M.V. separable
connectors 10-36 KV

Checks the absence of voltage on the capacitive terminals of plug-in M.V. bushings.
Sensor in the form of a bent finger enabling removal and reinstallation
of the terminal insulating cover.
Signal via beeping and bright red flashing of electro-luminescent diodes.
Built-in function test via the "TEST" button which covers the entire device.
Penmanent stand-by state.
Power supply: four 1.5 V, R-6 batteries.
Mounting on insulating stick via a universal end.

Reference Characteristics J!l.
CC-1S1-K Tester in rigid case wtth batteries 70 x 100 x 165 mm
CC-45-K 700
Stick to use with the CC-151 K. L = 1.25 m 600

o Dimensions A Weight _ Total length
