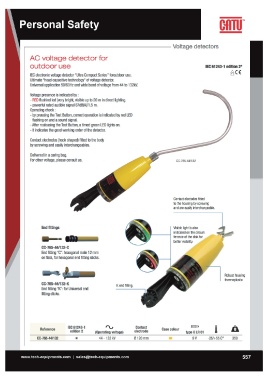

AC voltage detector for IEC 61243-1 edition 2*
outdoor use
~ CE
IEC electronic voltage detector "Ultra Compact Series" foroutdoor use.
Ultimate "head capacitive technology" of voltage detector.
Universal application 50/60Hz and wide band of voltage from 44 to 132kIJ.
Voltage presence is indicated by :
- RED flashind led {very bright,visible up to 20 min direct lighting.
- powerful rated audible signal 67dB{A)l1 .5 m.
Operating check:
- by pressing the Test Button, correct operation is indicated by red LED
flashing on and a sound signal.
- After realeasing the Test Button, atimed green LED lights on.
- It indicates the good working order of the detector.
Contact electrodes (hook shaped) fitted to the body
by screwing and easily interchangeables.
Delivered in acaring bag. CC -765 -44/132
For other voltage, please consult us.
End fittings Contact electodes fitted
tothe housing by screwing
CC-765-44I132-C and are easily interchangeable.
End fitting "C": hexagonal male 12 mm
on flats,for hexagonal end fitting sticks. Visible light is also
indicated onthe circum
ference of thedisk for
better visibility.
Robust housing
thermoplastic
CC-765-44/132-K Kend fitting.
End fitting "K":for Universal end
fitting sticks.
Reference IEC 61243-1 IV Contact Case colour type 6 LR 61 I
CC-765-441132 edition 2 electrode
(Operating voltage) • 9V -25/+55 Co 350
* 0120 mm
44 - 132kV
