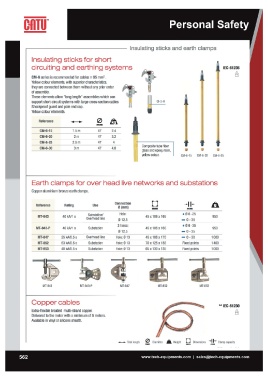

Page 568 - techequipmentscatalogue2016

Insulating sticks and earth clamps

Insulating sticks for short IEC-61235
circuiting and earthing systems
~
CM-6 series is recommended for cables ~ 95 mm2 •
Yellow colour elements,with superior characteristics, CI-3-H
they are connected between them without any prior order
of assembly. Composite tube fiber
These elements allow "long length" assemblies which can glass and epoxy resin,
support short-circuit systems with large cross-section cables ye llow colou r.
Shockproof guard and pole end cap.
Yellow colour elements.

Reference .......... (2) 4\

mm

CM-6-15 1.5m 47 2.4 •
CM-6-20 2m 47 3.2
CM-6-25 2.5 m 47 4 CM-6-15
CM-6-30 3m 47 4.8

CM-6-20 CM-6-25

Earth clamps for over head live networks and substations

Copper aluminium bronze earth clamps.

Reference Rating Use oConnection 0 -11- ill.
(mm) mm
MT-843 40 kAl1 s Substation! mm 950
Overhead line Hole: . 06 -25
MT-843-P 40 kAl1 s 012.5 45x106x165 950
MT-847 25 kAlO .5 s Substation 3 holes: - 0 - 35 1000
MT-852 63 kAlO .5 s 0 12.5 45x106x165 . 06 -35 1400
MT-853 40 kAlO .5 s Overhead line Hole: 013 1000
Substation Hole: 013 45 x 106 x 170 - 0 - 35
Substation Hole: 0 13 70 x 125 x 155 - 0-30
65x130x135 Fixed points
Fixed points

MT-843 MT-843-P MT-847 MT-852 MT-853

Copper cables ** IEC-61230

Extra-flexible braided multi-strand copper. ~

Delivered to the meter with a minimum of 5 meters.

Available in vinyl or silicone sheath.

o 0 -11--
Total length Diametre . . Weight Dimensions Clamp capacity
mm mm mm
