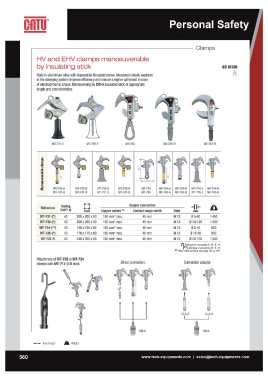

HV and EHV clamps manreuverable Clamps
by insulating stick
IEC 61230
Body in aluminium alloy with trapezoidal threaded screw. Interposed elastic washers
in the clamping system improve efficiency and ensure a higher withstand in case ~
of electrodynamic shock. Manreuvering by CM-6 insulated stick of appropriate
length and characteristics.

MT-731-E MT-732-E MT-734 MT-735-H

MT-732-A MT-732-B MT-732-E MT-732-H MT-734 MT-734-A MT-734-B MT-734-E MT-734-H
MT-731-A MT-731-B MT-731-E MT-731-H MT-735 MT-735-A MT-735-B MT-735-E MT-735-H

Reference Rating 0 Copper cables ** Copper connection Stud A-11-
(kA/1 s) 150 mm2max. Contact range width
mm 150 mm2max. 45mm mm
200 x 200 x 50 150 mm2max. 45mm
MT-731-(*) 40 200 x 200 x 50 150 mm2max. 40mm M 12 05-60 1450
MT-732-(*) 40 145 x 125 x 52 40mm
MT-734-(**) 40 178 x 175 x 60 150 mm2max. 40mm M 12 040-120 1450
MT-735-(*) 40 240 x 200 x 55
MT-737-H 40 M 12 05-40 800

M 12 015-60 900

M 12 020-120 1350

(*1 Add type of connection A - B- E- H.
**) Add type of connection B- E- H.
** Other cablesections:see page 161 or 162.

Attachment of MT-735 or MT-734 Direct connection. Connection adaptor.
clamps with MT-717-3-8 hook.

W tt

CM-6 ~~
CI-3-E CI-3-H

I I

CM-6

- Total length a Weight
