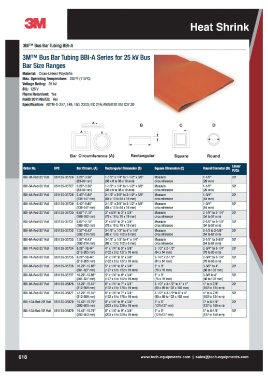

P. 624
M Bus Bar Tubing BBI-A
3MTMBus Bar Tubing BBI-A Series for 25 kV Bus
Bar Size Ranges
Material: Cross-Unked Polyolefin
Max. Operating Temperature: 230°F (110°C)
Voltage Rating: 25 kV
BIL: 125 V
Flame Retardant: Yes
RoHS 2011/65IEU: Yes
Specification: ASTM-D-257, 149, 150, 2303; IEC 216; ANSI/IEEE Std C37.20
E A= B C 0
'tJ]O i-r DI I Ro und
Bar Circumference (A) Recta ng ular Sq ua re
Order No. UPC Bar Circum. (A) Rectangular Dimension (8) Square Dimension (C) Round Dlametar (D) ~:r
BBI-3A-Red-20' Roll 051135-35726 3.28"-3.56" 1-1/2" x 1/4" to 1-1/2" x 3/8" Measure 1-1/8" 20'
BBI-3A-Red-50' Roll 051135-35727 (83-90mm) (38 x 6 to 38 x 10 mm) circumference (29mm) 50'
BBI-4A-Red-20' Roll 051135-35728 20'
BBI-4A-Red-50' Roll 051135-35729 3.28"-3.56" 1-1/2" x 1/4" to 1-1/2" x 3/8" Measure 1-1/8" 50'
BBI-5A-Red-20' Roll 051135-35730 (83-90 mm) (38 x 6 to 38 x 10 mm) circumference (29mm) 20'
BBI-5A-Red-50' Roll 051135-35731 50'
BBI-6A-Red-20' Roll 051135-35732 5.43"-5.80" 2-1/2" x 3/8" to 2-1/2" x 5/8" Measure 1-3/4" 20'
BBI-6A-Red-50' Roll 051135-35733 (138-147 mm) (64 x 10to 64x 16 mm) circumference (44mm) 50'
BBI-7A-Red-20' Roll 051135-35734 20'
BBI-7A-Red-50' Roll 051135-35735 5.43"-5.80" 2-1/2" x 3/8" to 2-1/2" x 5/8" Measure 1-3/4" 50'
BBI-SA-Red-20' Roll 051135-35736 (138-147 mm) (64 x 10 to 64x 16 mm) circumference (44mm) 20'
BBI-8A-Red-50' Roll 051135-35737 50'
BBI-9A-Red-20' Roll 051135-35876 6.67"-7.18" 3" x 5/8" to 3" x 3/4" Measure 2-1/8" to 2-114" 20'
BBI-9A-Red-50' Roll 051135-35877 (169-182 mm) (76 x 16 to 76 x 19 mm) circumference (54 to 57 mm) 50'
BBI-l0A-Red-20' Roll 051135-35878 20'
BBI-10A-Red-50' Roll 051135-35879 6.67"-7.1 8" 3" x 5/8" to 3" x 3/4" Measure 2-1/8" to 2-114" 50'
(169-182 mm) (76 x 16 to 76 x 19 mm) circumference (54 to 57 mm)
7.57"-8.43" 3-1/2" x 1/2" to 4" x 1/4" Measure 2-1/2 to 2-5/8"
(192-214 mm) (89 x 13 to 102x 6 mm) circumference (64 to 67 mm)
7.57"-8.43" 3-1/2" x 1/2" to 4" x 1/4" Measure 2-1/2" to 2-5/8"
(192-214 mm) (89 x 13 to 102x 6 mm) circumference (64 to 67 mm)
8.28"-10.44" 4" x 1/4" to 5" x 3/8" 2-1/2" x 2-1/2" 2-3/4" to 3-1/4"
(210-265 mm) (102 x 6 to 127 x 10 mm) (64 x 64 mm) (70 to 83 mm)
8.28"-10.44" 4" x 1/4" to 5" x 3/8" 2-1/2" x 2-1/2" 2-3/4" to 3-114"
(210-265 mm) (102 x 6 to 127 x 10 mm) (64 x 64 mm) (70 to 83 mm)
10.29"-1 2.88" 5" x 1/4" to 6" x 3/4" 3" x3" 3-3/8" to 4"
(261-327 mm) (127 x 6 to 152 x 19 mm) (76 x 76 mm) (86 to 102 mm)
10.29"- 12.88" 5" x 1/4" to 6" x 3/4" 3" x 3" 3-3/8 to 4"
(261-327 mm) (127 x 6 to 152 x 19 mm) (76 x 76 mm) (86 to 102 mm)
12.29"-15.31 " 6" x 1/4" to 7" x 3/4" 3-1/2" x 3-1/2" to 4" x 4" 4" to 4-7/8"
(312-389 mm) (152 x 6 to 178 x 19 mm) (89 x 89 to 102 x 102 mm) (102 to 124 mm)
12.29"-15.31 " 6" x 1/4" to 7" x 3/4" 3-1/2" x 3-1/2''to 4" x 4" 4" to 4-7/8"
(312-389 mm) (152 x 6 to 178 x 19 mm) (89 x 89 to 102 x 102 mm) (102 to 124 mm)
15.43"-19.79" 8" x 1/4" to 9" x 3/4" 5" x 5" 5" to 6-1/4"
(392-503 mm) (203 x 6 to 229 x 19 mm) (127x127 mm) (127 to 159 mm)
15.43"-19.79" 8" x 1/4" to 9" x 3/4" 5" x 5" 5" to 6-1/4"
(392-503 mm) (203 x 6 to 229 x 19 mm) (127x127 mm) (127 to 159 mm)
618 www.tech-equipments.comlsales@tech-equipments.com
