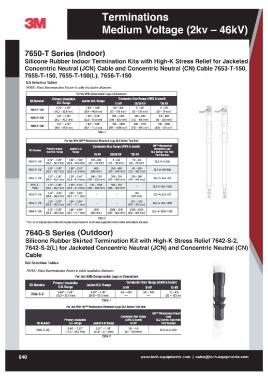

Page 646 - techequipmentscatalogue2016

0-T Series (Indoor)

Silicone Rubber Indoor Termination Kits with High-K Stress Relief for Jacketed
Concentric Neutral (JCN) Cable and Concentric Neutral (CN) Cable 7653-T-150,
7655-T-150, 7655-T-150(L), 7656-T-150

Kit Selection Tables

NOTE: Final Determination Factor is cable insulation diameter.

Kit N b Primary Insulation J k 0DR Conductor Size Range (AWG & kemil)
um er O.D. Range ae et . . ange
15 kV 25128 kV *35 kV
7653-T-150 0.72" - 1.29"
(18,3 - 32,8 mm) 1.04" - 1.60" 210 - 300 2 - 4/0 2 - 210
7655-T-150 (26,4 - 40,6 mm) (70 - 150 mm~ (35 - 120 mm~ (35 - 70 mm~
1.05" - 1.80"
7656-T-150 (26,7 - 45,7 mm) 1.39" - 2.40" 500 -1250 250 - 800 3/0 - 600
(35,3 - 61 ,0 mm) (240 - 625 mm~ (150 - 400 mm~ (95-325 mm~
1.53" - 2.32"
(38,9 - 58,9 mm) 1.84" - 2.80" 1250 - 2000 900 - 1750 700 - 1500
(46,7 - 71 ,1 mm) (625 - 1000 mm~ (500 - 800 mm~ (400 - 725 mm~

Table 1

Kit Number Primary Insula- Jacket 0.0. Conductor Size Range (AWG & kemil) 3MTM Mechanical
tion 0.0. Range Range Shearbolt Lugs
15 kV 25/28 kV *35 kV QL2 Series: Two Hole

Part Number

7653-T- 150 0.72" - 1.29" 1.04" - 1.60" 210 - 250 2- 4/0 1/0 - 210 QL2-A- 2- 250
(70 - 120 mm~ (60 - 70 mm~
(18,3 - 32,8 mm) (26,4 - 40,6 mm) (70 - 150 mm~

7655-T-150 1.05" - 1.80" 1.39" - 2.40" 500 250 - 500 4/0 - 600 QL2-A-4/0-1l00
(26,7 - 45,7 mm) (35,3 - 61 ,0 mm) (240 mm~
(150 - 240 mm~ (120-325 mm~

7655-T-150 1.05" -1 .80" 1.39" - 2.40" 500-750 350 -750 350-500 QL2-A-35Q--750

(26,7 - 45,7 mm) (35,3 - 61 ,0 mm) (240 - 325 mm~ (185 - 400 mm') (185-240 mm~

7655-T- 1.15" - 1.90" 1.39" - 2.40" 750 -1000 500 -750 QL2-A-50Q--l000
150(L)
(29,2 - 48,2 mm) (35,3 - 61 ,0 mm) (400 - 500 mm~ (240 - 325 mm~

7656--T-150 1.53" - 2.32" 1.84" - 2.80" 750 QL2-A-35Q--750 lU
(38,9 - 58,9 mm) (46,7-71 ,1 mm) (400 mm~

7656--T-150 1.53" - 2.32" 1.84" - 2.80" 750 -1000 QL2-A-50Q--l000
(38,9 - 58,9 mm) (46,7 -71 ,1 mm) (400-500 mm~

7656--T-150 1.53" - 2.32" 1.84" - 2.80" 1250 1000 -1250 1000-1250 QL2-A-l00Q--1250
(38,9 - 58,9 mm) (46,7 -71 ,1 mm) (625 mm~ (600 - 625 mm~ (600 - 625 mm~

Table 2
*The 150 kV impulse level meels the impulse requiremenls for 35 kV class equipment where indoor terminations are used.

7640-S Series (Outdoor)

Silicone Rubber Skirted Termination Kit with High-K Stress Relief 7642-S-2,
7642-S-2(L) for Jacketed Concentric Neutral (JCN) and Concentric Neutral (CN)
Cable

Kit Selection Tables

NOTE: Final Determination Factor is cable insulation diameter.
For Use With Compression Lugs or Connectors

For Use With 3MTM Mechanical Shearbolt Lugs QL2 Series: Two Hole
