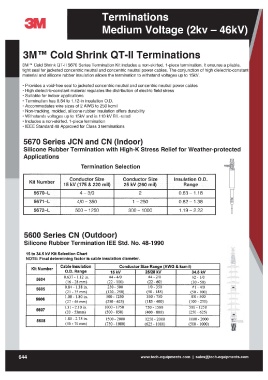

Page 650 - techequipmentscatalogue2016

Ģ Cold Shrink QT-II Terminations

3M™ Cold Shrink QT-II 5670 Series Termination Kit includes a non-skirted, 1-piece termination . It ensures a pliable,
tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric-constant
material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.

• Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for indoor applications
• Termination has 0.64 to 1.12-in insulation 0.0 .
• Accommodates wire sizes of 2 AWG to 250 kcmil
• Non-tracking, molded, silicone rubber insulation offers durability
• Withstands voltages up to 15kV and is 110 kV BIL-rated
• Includes a non-skirted, 1-piece termination
• IEEE Standard 48 Approved for Class 3 terminations

5670 Series JCN and CN (Indoor)

Silicone Rubber Termination with High-K Stress Relief for Weather-protected
Applications

Termination Selection

Kit Number Conductor Size Conductor Size Insulation 0.0.
15 kV (175 & 220 mil) 25 kV (260 mil) Range
567Q-L
5671-L 4 - 3/0 2 0 .63-1 .18
5672-L
4/0 - 350 1 - 250 0 .82 - 1.38

500 -1250 300 -1000 1.19 - 2 .22

5600 Series CN (Outdoor)

Silicone Rubber Termination lEE Std. No. 48-1990

15 to 34.5 kV Kit Selection Chart
NOTE: Final determining factor is cable insulation diameter.

Kit Number Cable Insulation Conductor Size Range (AWG & kcmil)
5604 0 .0. Range
5605 15 kV 25/28 kV 34.5 kV j
0.637 - 1.12 in.
(16 - 28 mm) #2 - 110 -,........,
0.84 - 1.38 in.
(30 - 50) )

#1 - 4/0 ~

5606 1.31 - 2.10 in. 1000 - 1750 750 - 1500 500 - 1250 r::: :i;
5607 (33 - 53mm) (500 - 850) (400 - 800) (250 - 625)
5608 ~~
1.80 - 2.75 in . 1500 - 2000 1250 - 2000 1000 - 2000
(46 - 70 mm) (750 - 1000) (625 - 1000) (500 - 1000)
