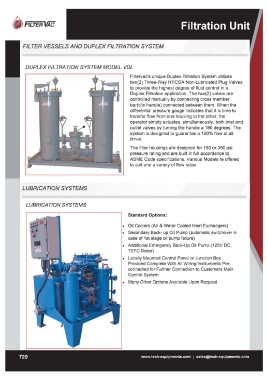

P. 726
TER VESSELS AND DUPLEX FIL TRA TlON SYSTEM
DUPLEX FIL TRA TlON SYSTEM MODEL VDL
Filtervac's unique Duplex Filtration System utilizes
two(2) Three-Way HYCOA Non-Lubricated Plug Valves
to provide the highest degree of fluid control in a
Duplex Filtration application. The two(2) valves are
controlled manually by connecting cross member
bar(c/w handle) connected between them. When the
differential pressure gauge indicates that it is time to
transfer flow from one housing to the other, the
operator simply actuates, simultaneously, both inlet and
outlet valves by turning the handle a 180 degrees. The
system is designed to guarantee a 100% flow at all
times.
The filter housings are designed for 150 or 350 psi
pressure rating and are built in full accordance to
ASME Code specifications. Various Models re offered
to suit and a variety of flow rates.
LUBRICATlON SYSTEMS
LUBRICA TION SYSTEMS
Standard Options:
• Oil Coolers (Air & Water Cooled Heat Exchangers)
• Secondary Back- up Oil Pump (automatic switchover in
case of 1st stage oil pump failure)
• Additional Emergency Back-Up Oil Pump (125V DC ,
TEFC Motor)
• Locally Mounted Control Panel or Junction Box
Provided Complete With All Wiringllnstruments Pre-
connected for Further Connection to Customers Main
Control System
• Many Other Options Available Upon Request
720 www.tech-equipments.comlsales@tech-equipments.com
