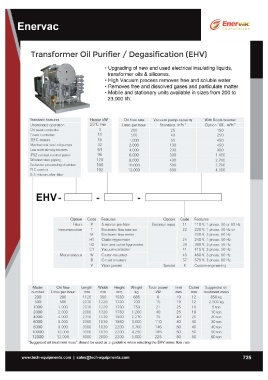

nsformer Oil Purifier / Degasification (EHV)
• Upgrading of new and used electrical insulating liquids,
transformer oils &silicones.
• High Vacuum process removes free and soluble water.
• Removes free and dissolved gases and particulate matter.
• Mobile and stationary units available in sizes from 200 to
23,000Ith.
Stand ard features Heater kW O il fl ow rate Vac uum pump ca pac ity With Roots booster
Unattended operation 25°C rise litres per hour Stand ard , m3h" Option ' VB ', m3h"
Oil level controller
Foam controller 3 200 25 150
TEFC motors 500 40 250
Mechanical sea l oil pumps 11 1,000 65 450
Low watt density heaters 2,000 100 450
16 4,000 200 900
IP52 central control panel 32 6 ,0 0 0 300 1.450
Welded steel piping 64 8 ,0 0 0 400 2,700
Exclusive processing chamber 96 10,000 500 2,700
PLC control 128 12 ,000 600 4,500
0.5 micron after-filter 160
192 -
bEHV -
-
O p t i on Code Features Option Code Features
Filters P 5 micron pre-filter Electrical input 11 110 V, 1 phase, 50 or 60 Hz
T Electronic flow totaliser 22 220 V, 1 phase, 50 Hz or
Instrumentation M Electronic flow meter Specia l 220 V, 3 phase, 60 Hz
Hl Outlet hygrometer 24 240 V, 1 phase , 50 Hz
Miscellaneous H2 Inlet and outlet hygrometer 38 380 V, 3 phase , 50 Hz
Cl Vacuum controller 41 415 V, 3 phase, 50 Hz
46 460 V, 3 phase , 60 Hz
W Caster-mounted 57 575 V, 3 phase, 60 Hz
B Circuit breakers X
V Viton gaskets Custom engineering
Model O il flow Length Width Height Wei ght Total power Inl et Outlet Sugg ested o il
treatment mass
number litres per hour mm mm mm kg kW mm mm
850 kg
200 200 1120 960 1580 685 6 19 12 2,500 kg
50 0 500 2030 1220 1780 700 15 19 12 5 ton
10 ton
1000 1,000 2030 1220 1780 750 21 25 19 20 ton
30 ton
2000 2,000 2080 1320 1780 1,200 40 25 19 40 ton
50 ton
4000 4,000 2310 1570 1980 2,270 75 40 25 60 ton
6000 6,000 2590 1830 1980 3,000 110 40 40
8000 8,000 3000 1830 2200 3.700 146 50 40
10000 1 0 ,0 0 0 3000 1830 2200 4,2 50 185 50 50
12000 12,000 4000 2000 2200 5,000 225 50 50
" Suggested oi l treatment mass" shou ld be used as a guideline when selecting the EHV series flow rate
