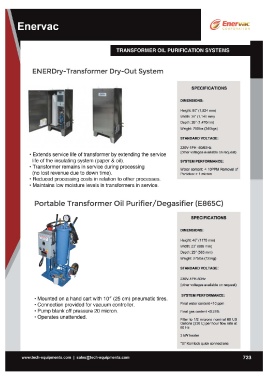

ERDry-Transformer Dry-Out System

• Extends service life of transformer by extending the service SPECIFICATIONS
life of the insulating system (paper & oil).
DIMENSIONS:
• Transformer remains in service during processing
(no lost revenue due to down time). Height: 60" (1 ,524 mm)
Width: 36" (1 ,140 mm)
• Reduced processing costs in relation to other processes. Depth : 26" (1 ,470mm)
• Maintains low moisture levels in transformers in service. Weight: 750lbs (340kgs)

STANDARD VOLTAGE:

220V-1 PH -50/60Hz
(other voltages available on request)

SYSTEM PERFORMANCE:
Water content: < 10PPM Removal of
Partides: > 1 micron

Portable Transformer Oil Purifier/Oegasifier (E865C)

• Mounted on a hand cart with 10" (25 cm) pneumatic tires. SPECIFICATIONS
• Connection provided for vacuum controller.
• Pump blank off pressure 20 micron. DIMENSIONS:
• Operates unattended.
Height: 46" (1170 mm)
Width: 23" (585 mm)
Depth: 23" (585 mm)
Weight: 2751bs (125kg)

STANDARD VOLTAGE:

230V-1 PH-60Hz
(other voltages available on request)

SYSTEM PERFORMANCE:
Final water content <10 ppm
Final gas content <0.25%
Filter to 1/2 microns nominal 60 US
Gallons (230 L) per hour flow rate at
60 Hz
3 kW heater

"Yo" Kamlock quick connections
