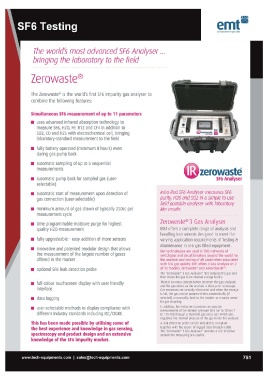

P. 757
asset protection specialists
The world's most advanced SF6 Analyser ...
bringing the laboratory to the field
Zerowaste®
The Zerowaste®is the world's first SF6 impurity gas analyser to
combine the following features:
Simultaneous SF6 measurement of up to 11 parameters -.......-.. zerowaste
SF6 Analyser
• uses advanced infrared absorption technology to
measure SF6, H20, HF, R12 and CF4 in addition to Infra Red 5F6 Analyser measures 5F6
S02, CO and H2S wi th electrochemical cell, bringing purity, H20 and 502 in a simple to use
labora tory-standard measurement to the field field portable analyser with laboratory
like results
• fully battery operated (minimum 8 hours) even
during gas pump back Zerowaste®3 Gas Analyser
• au tomatic sampling of up to 5 sequential EMT offers a complete range of analysis and
measurements handling instruments designed to meet the
varying application requirements of Testing &
• au toma tic pump back for sampled gas (user- Maintenance in SF6 gas filled equipment.
selec table)
Our technologies are used in TErD networks of
• au toma tic start of measurement upon detection of switchgear and circuit breakers around the world for
gas connection (user-selectable) the analysis and testing of all parameters associated
with SF6 gas quality. EMT offers 3 Gas Analysis on 2
• minimum amount of gas drawn of typically 250cc per of its models: ZerowasteCl> and Asserolyz-IRTM.
measurement cycle The "Zerowaste'" 3 Gas Analyser" first analyses the gas and
then stores the gas in an internal storage facility.
• time programmable moisture purge for highest There is no cross contamination between the gas analysed
quality H20 measurement and the gas stored as the analysis is done prior to storage.
Gas emissions are virtually eliminated and when the storage
• fully upgradeable - easy addi tion of more sensors is full, the gas can be pumped ei ther au tomatically (if
selected) or manually, back to the breaker or a waste vessel
• innovative and patented modular design that allows for gas recycling.
the measurement of the largest number of gases In addi tion, the instrument provides an accurate
offered in the market measurement of the breaker pressure (0.5 bar to 10 bar 7
to 145 PSI) through a manifold gas entry port which also
• optional SF6 leak detection probe regulates the internal pressure of the gas inside the analyser.
A leak detection probe can be included as an option
• full colour touchscreen display with user friendly together with the export of logged data through a USB.
interface The "Zerowaste'" 3 Gas Analyser" provides a cost effec tive
solution for measuring SF6 quality.
• data logging
• user-selectable methods to display compliance with
differen t industry standards including IEC/CiGRE.
This has been made possible by utilising some of
the best experience and knowledge in gas sensing,
spectroscopy and product design and an extensive
knowledge of the SF6 impurity market.
