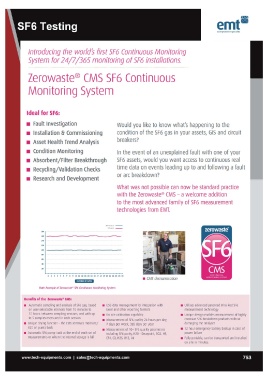

P. 759
asset protection specialists
Introducing the world's first SF6 Continuous Monitoring
System for 24/7/365 monitoring of SF6 installations.
Zerowaste® CMS SF6 Continuous
Monitoring System
Ideal for SF6: Would you like to know what's happening to the
condition of the SF6 gas in your assets, GIS and circuit
• Fault Investigation breakers?
• Installation &Commissioning
• Asset Health Trend Analysis In the event of an unexplained fault with one of your
• Condition Monitoring SF6 assets, wou ld you want access to continuous real
• Absorbent/Filter Breakthrough time data on events leading up to and following a fault
• Recycling/Validation Checks or arc breakdown?
• Research and Development
What was not possible can now be standard practice
with the Zerowaste®CMS - a welcome addition
to the most advanced family of SF6 measurement
technologies from EMT.
S"P...;I, ~ • eMS demonstration
H10ppomy _
----180
160 - - - - - -
""
uo
,..,
..8..0
2.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 11 18 19 20 21 22 23 24 25
e ""Hi·i"i.hf'
Data Example of Zerowaste" SF6 Continuous Monitoring System
Benefits of the Zerowaste eMS:
• Automatic sampling and analysis of SF6 gas, based • USB data management for integration with • Utilises advanced patented Infra Red SF6
on user-selectable intervals from 10 minutes to Excel and other reporting formats measurement technology
10 hours between sampling sessions, and with up
to 5 samples measured in each session • On site calibration capability • Unique design enables measurement of highly
corrosive SF6 breakdown products without
• Unique drying function - the CMS removes moisture/ • Measurement of SF6 quality 24 hours per day, damaging the analyser
H20 on pump back 7 days per week, 365 days per year
• 12 hour emergency battery backup in case of
• Automatic SF6 pump back at the end of each set of • Measurement of 10+ SF6 quality parameters power failure
measurements or when the internal storage is full including SF6 purity, H20 - Dewpoint, 502, HF,
CF4, CO, H2S, R12, Air • Fully portable, can be transported and insta lled
on site in minutes.
www.tech-equipments.comlsales@tech-equipments.com 753
