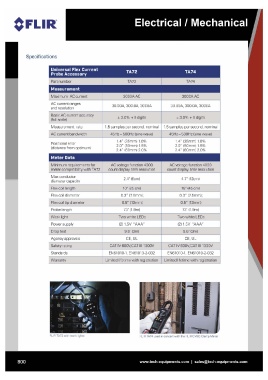

P. 806
IR
Specifications
Maximum AC current 3000AAC 3000AAC
AC current ranges 30.00A, 300.0A, 3000A 30.00A, 300.0A, 3000A
and resolution
Basic AC cu rrent accuracy ± 3.0% + 5 digits ± 3.0% + 5 digits
(full sca le)
Measurement rate 1.5 samples per second, nominal 1.5 samples per second, nominal
AC current bandwidth 45Hz - 500Hz (sine wave) 45Hz - 500Hz (sine wave)
Positional error 1.4" (35mm) 1.0% 1.4" (35mm) 1.0%
(distance from optimum) 2.0" (50mm) 1.5% 2.0" (50mm) 1.5%
2.4" (60mm) 2.0% 2.4" (60mm) 2.0%
Meter Data
Minimum requirements for AC voltage function 4000 AC voltage function 4000
meter compatibility with TAn count display 1mV resolution count display 1mV resolution
Max conductor 2.4" (6cm) 4.7" (12cm)
diameter capacity
Flex coil length 10" (25 cm) 18" (45 cm)
Flex coil diameter 0.3" (7.5mm); 0.3" (7.5mm) ;
Flex coil tip diameter 0.5" (13mm) 0.5" (13mm)
Probe length 73 " (1.9m) 73" (1.9m)
Work light Two white LEOs Two w hite LEOs
Power supply (2) 1.5V "AAA" (2) 1.5V "AAA"
Drop test 9.8' (3m) 9.8' (3m)
Agency approvals CE, UL CE, UL
Safety rating CAT IV600V,CAT II11000V CATIV600V,CAT II 11000V
Standards EN61 010-1, EN61 01 0-2-032 EN61 01 0-1, EN61 01 0-2-032
Warranty Limited lifetime with registration Lim ited lifetime w ith registration
FUR TAn with wo rk lights FUR TA74 used in concert with the FUR CM83 Clamp Meter
