P. 811
~FLIR

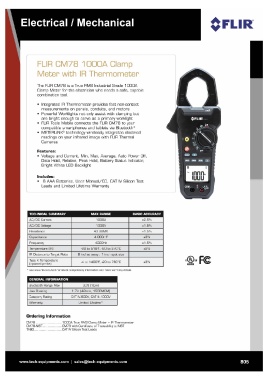

FLIR CM78 1DDDA Clamp
Meter with IR Thermometer
The FUR CM78 is a True RMS Industrial Grade 1DDOA
Clamp Meter for the electrician who needs a safe, capable
combination tool.
• Integrated IR Thermometer provides fast non-contact
measurements on panels, conduits , and motors
• Powerful Worklights not only assist with clamping but
are bright enough to serve as a primary worklight
• FUR Tools Mobile connects the FUR CM78 to your
compatible smartphones and tablets via Bluetooth *
• METERLiNK®technology wirelessly integrates electrical
readings on your infrared image with FUR Thermal
Cameras
Features:
• Voltage and Current, Min, Max, Average, Auto Power Off,
Data Hold , Relative, Peak Hold, Battery Status Indicator,
Bright White LED Backlight
Includes:
• 6 AAA Batteries , User Manual/CD, CAT IV Silicon Test
Leads and Limited Lifetime Warranty
TECHNICAL SUMMARY MAX RANGE BASIC ACCURACY
AC/DC Current 1DOOA ±2.5%
AC/DC Voltage 100DV ±1.5%
Resistance 4 0 .0 0 M Q ±1.5%
Capacitance 4 .000mF ±3%
Frequency 4000Hz ±1.5%
Temperature (IR) -20 to 518°F, -20 to 270°C ±2%
IR Distance to Target Ratio 8 inches away: 1 inch spot size C®US~
LISTED
Type K Temperature -4 to 1400°F, -20 to 760°C ±3%
(optional probe)
* See www.flir.com/test for latest compatibility information and more warranty details
GENERAL INFORMATION
Bluetooth Range Max 32ft (10m)
Jaw Opening 1.7in (42mm, 1500MCM)
Category Rating CAT IV-600V, CAT 111-1000V
Warranty Limited Lifetime *
Ordering Information
CM78 . . . 1000A True RMS Clamp Meter + IR Thermometer
CM78-NIST .. .... CM78 with Certificat e of Traceability to NIST
TA80 ...... CAT IV Silicon Test Leads
www.tech-equipments.comlsales@tech-equipments.com 805
