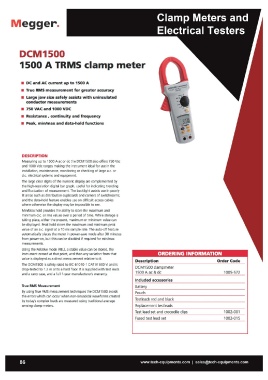

P. 92
ggerm
DCM1500
1500 A TRMS clamp meter
• DC and AC current up to 1500 A
• True RMS measurement for greater accuracy
• Large jaw size safely assists with uninsulated
conductor measurements
• 750 VAC and 1000 VDC
• Resistance, continuity and frequency
• Peak, minimax and data-hold functions
DESCRIPTION ORDERING INFORMATION
Measuring up to 1500 A ac or dc the DCM1500 also offers 750 Vac Description Order Code
and 1000 Vdc ranges making the instrument ideal for use in the
installation, maintenance, monitoring or checking of large a.c. or DCM1 500 clampm eter 1 0 0 5- 5 7 2
d.c. electrical systems and equipment. 150 0 A ac & dc
The large clear digits of the numeric display are complemented by Included accessories
the high-resolution digital bar graph, useful for indicating trending Battery
and fluctuation of measurement. The backlight assists use in poorly Pouch
lit areas such as distribution cupboards and corners of switch rooms; Testleads red and black
and the data-hold feature enables use on difficu It access cables Replacement testleads
where otherwise the display may be impossible to see. Test lead set and crocodile clips
Fused t est lead set
MiniMax hold provides the ability to store the maximum and
minimum d.c. or rms va lues over a period of time. While storage is
taking place, either the present, maximum or minimum va lue can
be displayed . Peak hold stores the maximum and minimum peak
va lue of an a.c. signal at a 10 ms sample rate. The auto-off feature
automatically places the meter in power-save mode after 30 minutes
from power-on, but this can be disabled if requ ired for min/max
measurements .
Using the Relative mode (REL), a stable value can be stored, the
instrument zeroed at that point, and then any variatio n from that
va lue is displayed as a direct measurement relative to it.
The DCM 1500 is safety rated to IEC 61010-1 CAT IV 600 V. and is
drop-tested to 1.2 m onto a hard floor. It is supplied w ith test leads
and a carry case, and a fu l11-year manufacturer's warranty.
True RMS Measurement
By using True RM S measurement techn iques the DCM1500 avoids
the errors which can occur when non-sinusoidal waveforms created
by today's complex loads are measured using traditional average
sensing clamp meters.
1002-001
1002-01 5
86 www.tech-equipments.comlsales@tech-equipments.com
