Jl..AMPROBE"

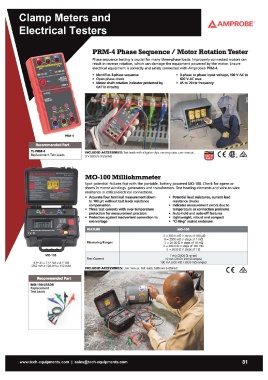

PRM-4 Phase Sequence I Motor Rotation Tester
Phase sequence testing is crucial for many three-phase loads. Improperly connected motors can
result in reverse rotation, which can damage the equipment powered by the motor. Ensure
electrical equipment is correctly and safely connected w ith Amprobe's PRM-4.
• Identifies 3-phase sequence • 3-phase to phase input voltage, 100 V AC to
• Open phase check 600VACmax
• Motor shaft rotation indicator protected by
• 45 to 70 Hz frequency
CAT'" circuitry
INCLUDED ACCESSORIES: Test leads w it h al ligator clips, carrying case, user manual,
9 V battery (insta lled)
MO-IOO Milliohmmeter
Spot potential fa ilures fast with the portable, battery powered MO-100. Check fo r opens or
shorts in motor windings, generators and transformers. Test heating elements and wire-to-wire
resistance in critical electrical connections.
• Accurate four terminal measurement down • Potential lead resistance, current lead
to 100 110 without test leads resistance resistance checks
compensation • Indicates measurement errors due to
• Three test currents with over-temperature temperature or connection problems
protection for measurement precision • Auto-hold and auto-off features
• Protection against inadvertent connection to • Lightweight robust and compact
overvoltage • "O-Ring" sealed enclosure
FEATURE M()"100
Measuring Ranges 0 - 200.0 mO in steps of 100 ~ O
o- 2000 mO in steps of 1 mO
0 - 20.00 0 in steps of 10 mO
0 - 200.0 0 in steps of 100 mO
o- 2000 0 in steps of 1 0
Test Current 1 mA (2000 0 range)
10 mA (20 0 /200 0 ranges)
9.8 " (L) x 7.5" (IN,) x 4.3" (D) 100 mA (200 mO 12000 mO ranges)
(250 mm x 190 mm x 110 mm) INCLUDED ACCESSORIES: User manual, test leads, batteries (installed) CE &
Recommended Part
MO-100-LEADS
Replacement
Test Leads
www.tech-equipments.comlsales@tech-equipments.com 81
