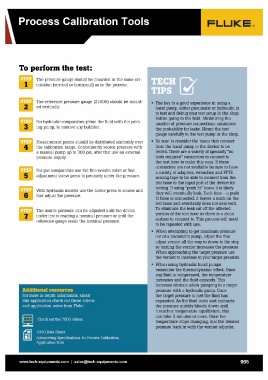

P. 971
FL.UKE ®
To perform the test:
The pressure gauge should be mounted in the same ori-
entation (vertical or horizontal) as in the process.
The reference pressure gauge (2700G) should be mount- • The key to a good experience in using a
ed vertically. hand pump, either pneumatic or hydraulic, is
to test and debug your test setup in the shop
For hydraulic comparators prime the fluid with the prim- before going to the field. Minimizing the
ing pump, to remove any bubbles. number of pressure connections minimizes
the probability for leaks. Mount the test
gauge carefully to the test pump in the shop.
Measurement points should be distributed uniformly over • Be sure to consider the hoses that connect
the calibration range . Conveniently source pressure with from the hand pump to the device to be
a manual pump up to 300 psi, after that use an external tested. There are a variety of specialty "no
pressure supply. tools required" connectors to connect to
the test hose to make this easy. If these
For gas comparators use the fine needle valve or fine connectors are not available be sure to have
adjustment screw press to precisely meter the pressure. a variety of adapters, wrenches and PITE
sealing tape to be able to connect from the
test hose to the input port of the device for
With hydraulic models use the screw press to source and testing. If using "push fit" hoses it is likely
fine adjust the pressure. they will eventually leak. Each time - a push
fit hose is connected, it leaves a mark on the
test hose and eventually does not seal well.
The source pressure can be adjusted until the device To eliminate the leak cut off the affected
portion of the test hose so there is a clean
7 under test is reading a nominal pressure or until the surface to connect to. This process will need
reference gauge reads the nominal pressure. to be repeated with use.
• When attempting to get maximum pressure
out of a pneumatic pump, adjust the fine
adjust vernier all the way to down to the stop
so turning the vernier increases the pressure.
When approaching the target pressure use
the vernier to increase to your target pressure.
• When using hydraulic hand pumps
remember the thermodynamic effect. Once
any fluid is compressed, the temperature
increases and the fluid expands. This
becomes obvious when pumping to a target
pressure with a hydrauliC pump. Once
the target pressure is met the fluid has
expanded. As the fluid cools and contracts
the pressure quickly bleeds down until
it reaches temperature equilibrium, this
can take 5 minutes or more. Once the
temperature stops changing, dial the desired
pressure back in with the vernier adjuster.
www.tech-equipments.comlsales@tech-equipments.com 965
