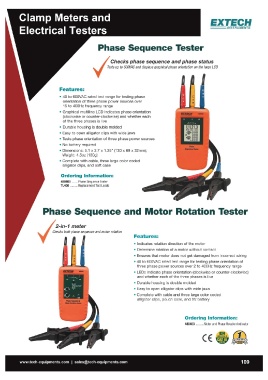

Page 115 - techequipmentscatalogue2016

EXTECH

===INSTRUMENTS

Phase Sequence Tester

V/ .Checks phase sequence and phase status
Tests up to 600VAC and displays graphical phase orientation on the large LCD

Features:

• 40 to 600VAC rated test range for testing phase
orientation of three phase power sources over
15 to 400Hz frequency range

• Graphical multiline LCD indicates phase orientation
(clockwise or counter-clockwise) and whether each
of the three phases is live

• Durable housing is double molded
• Easy to open alligator clips with wide jaws
• Tests phase orientation of three phase power sources
• No battery required
• Dimensions: 5.1 x 2.7 x 1.25" (130 x 69 x 32mm);

Weight: 4.50z (130g)
• Complete with cable, three large color coded

alligator clips, and soft case

Ordering Information:

480400 ........Phase Sequence Tester
TL400 ..........Replacement Test Leads

Phase Sequence and Motor Rotation Tester

¥/..2-in-1 meter Features:
Check, Iwth p"'se sequence ",d mutor rot,liun
• Indicates rotation direction of the motor

• Determine rotation of a motor without contact
• Ensures that motor does not get damaged from incorrect wiring
• 40 to 600VAC rated test range for testing phase orientation of

three phase power sources over 2 to 400Hz frequency range
• LEDs indicate phase orientation (clockwise or counter-clockwise)

and whether each of the three phases is live
• Durable housing is double molded
• Easy to open alligator clips with wide jaws
• Complete with cable and three large color coded

alligator clips, pouch case, and 9V battery

Ordering Information:

480403 ..........Motor and Phase Rotation Indicator
