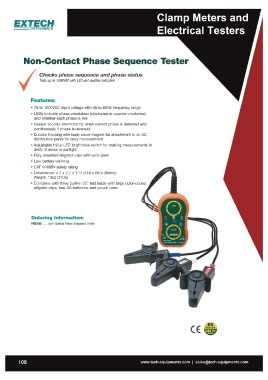

Non-Contact Phase Sequence Tester

V/ Checks phase sequence and phase status

Tests up to 1000VAC with LED and audible indication

Features:

• 75 to 1000VAC input voltage with 45 to 65Hz frequency range

• LEOs indicate phase orientation (clockwise or counter-clockwise)
and whether each phase is live

• Beeper sounds intermittently when correct phase is detected and
continuously if phase is reversed

• Durable housing with back cover magnet for attachment to an AC
distribution panel for easy measurement

• Adjustable Hillo lED brightness switch for making measurements in
dimly lit areas or sunlight

• Fully insulated alligator clips with wide jaws

• low battery warning
• CAT IV-600V safety rating
• Dimensions: 4.7 x 2.7 x 1.5" (118 x 69 x 38mm);

Weight: 130z (370g)
• Complete with three built-in 30" test leads with large color-coded

alligator clips, four AA batteries, and pouch case

Ordering Information:

PRT200 .......Non-Contact Phase Sequence Tester
