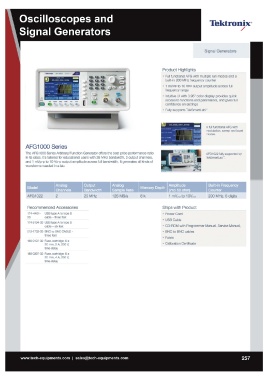

P. 263
Tektronix®
/
Signal Generators
......~ "f,I O. 1 = Product Highlights
51 H o~oc;.:>~Orl • Full functional AFG with multiple run modes and a
built-in 200 MHz frequency counter
:~'-~-' '1'11 1 Ii L"J
• 1 mVPP to 10 vpp output amplitude across full
.. ' _ - -1C:::i frequency range
_ . - .,I ==-::l • Intuitive UI with 3 .95" color display provides quick
access to functions and parameters, and gives full
~-.~ c::.E. n confidence on settings
• Fully supports TekSmartLab"
.' -. -' ',':~ ~O.:::'· :~:. ~
· -- I ' ~'" A full functional AFG with
modulation, sweep and burst
~ modes.
-. - ,jl'l l ~
AFG 1000 Series ~-----'--~
The AFG1 000 Series Arbitrary/Function Generator offers the best price performance ratio AFG 1022 fully supported by
in its class. It's tailored for educational users with 25 MHz bandwidth, 2 output channels, TekSmartLab '".
and 1 mVp-p to 10 Vp-p output amplitude across full bandwidth. It generates all kinds of
waveforms needed in a lab.
AFG1022 2 25 MHz 125 MS/s 8k 1 mVp-p to 10Vp-p 200 MHz, 6 digits
Recommended Accessories Ships with Product
174-4401- USB type A to type B • Power Cord
00 cable - three feet • USB Cable
• CD-ROM with Programmer Manual, Service Manual,
174-5194-00 USB type A to type B • BNC to BNC cables
cable - six feet • Fuses
• Calibration Certificate
012-1732-00 BNC to BNC CABLE-
three feet
159-0107-00 Fuse, cartridge; 5 x
20 mm, 2 A, 250 V,
time-delay
159-0397-00 Fuse, cartridge; 5 x
20 mm, 4 A, 250 V,
time-delay
www.tech-equipments.comlsales@tech-equipments.com 257
/
