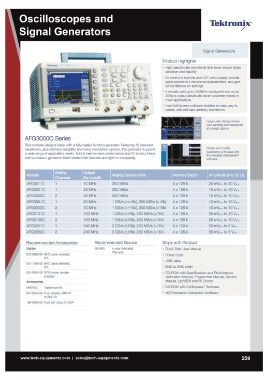

Page 265 - techequipmentscatalogue2016
P. 265
Tektronix®
/
Signal Generators
L ' ((C Product Highlights
c.. • High sample rate and stable time base ensure signal
precision and stability
l:
• 25 short-cut buttons and 5.6" color display provide
~ C!. C!. - quick access to functions and parameters. and give
full confidence on settings
( C ~ C!. C!. C!. ."
• 9 models with up to 240MHz bandwidth and up to
. - - . <=~C:.c..:.. 20Vp-p output amplitude cover customer needs in
LC C L0.L0:G: most applications
'::: ~ '~ ~ • Free ArbExpress software enables an easy way to
create. edit and load arbitrary waveforms
I...~.-.--. _..-_-_: Large color display shows
your settings and waveforms
at a single glance.
AFG3000C Series Create and modify
waveforms with ease with
Test complex designs faster with a fully loaded function generator. Featuring 12 standard the included ArbExpress®
waveforms. plus arbitrary capability and many modulation options. this generator supports software.
a wide range of application needs. Add in best-in-class performance and 25 shortcut keys
and you have a generator that's loaded with features and light on complexity.
AFG3011C 2 10MHz 250 MS/s 4 X 128 k 20 mVp-p to 20 Vp.p
AFG3021C 1 25 MHz 250 Ms/s 4 X 128 k 10 mVp-p to 10 Vp·p
AFG3022C 2 25 MHz 250 MS/s 4 X 128 k 10 mVp-p to 10 Vp.p
AFG3051C 50 MHz 1 GS/s «=16k). 250 Ms/s (> 16k) 4 X 128 k 10 mVp-p to 10 Vp·p
AFG3052C 2 50 MHz 1 GS/s «=16k). 250 MS/s (> 16k) 4 X 128 k 10 mVp-p to 10 Vp.p
AFG3101C 1 100 MHz 1 GS/s (::;16k). 250 MS/s (> 16k) 4 X 128 k 20 mVp-p to 10 Vp·p
AFG3102C 2 100 MHz 1 GS/s (::;16k). 250 MS/s (> 16k) 4 X 128 k 20 mVp-p to 10 Vp.p
AFG3251C 240 MHz 2 GS/s (::;16k). 250 MS/s (> 16k) 4 X 128 k 50 mVp-p to 5 Vp.p
AFG3252C 240 MHz 2 GS/s (::;16k). 250 MS/s (> 16k) 4 X 128 k 50 mVp.p to 5 Vp.p
Recommended Accessories Recommended Service Ships with Product
Cables SlLV400 5-year Extended • Quick Start User Manual
Warranty
012-0482-00 BNC cable shielded. • Power Cord
3ft. • USB cable
• BNC to BNC cable
012-1256-00 BNC cable shielded. • CD-ROM with Specifications and Performance
gft.
Verification Manual. Programmer Manual. Service
012-Q991 -oo GPIB cable. double Manual. LabVIEW and IVI Drivers
shielded • CD-ROM with ArbExpress'" Software
• NIST-traceable Calibration Certificate
Accessories
RM3100 Rackrnount kit
013-0345-00 Fuse adapter. BNC-P
to BNC-R
159-0454-00 Fuse set. 3pcs. 0.125A
www.tech-equipments.comlsales@tech-equipments.com 259
/
