AMPROBE$

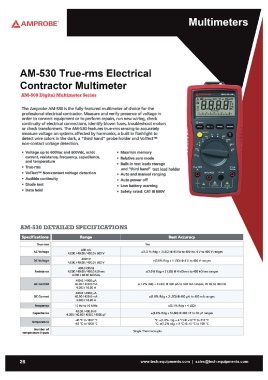

AM-S30 True-rms Electrical
Contractor Multimeter
AM-SOO Digital Multimeter Series
The Amprobe AM-530 is the fully-featured multimeter of choice for the
professional electrical contractor. Measure and verify presence of voltage in
order to connect equipment or to perform repairs, run new wiring, check
continuity of electrical connections, identify blown fuses, troubleshoot motors
or check transformers. The AM-530 features true-rms sensing to accurately
measure voltage on systems affected by harmonics, a built in flashlight to
detect wire colors in the dark, a "third hand" probe holder and VolTect™
non-contact voltage detection.
• Voltage up to 600Vac and 600Vdc, acldc • Maximin memory
current. resistance, frequency, capacitance, • Relative zero mode
and temperature • Built-in test leads storage
• True-rms and "third hand" test lead holder
• VoITect™ Non-contact voltage detection • Auto and manual ranging
• Audible continuity • Auto power off
• Low battery warning
• Diode test • Safety rated: CAT III 600V
• Data hold
AM-S30 DETAILED SPEClnCATIONS
Specifications Range Best Accuracy
True-rms 400 mV Yes
ACVoltage 4.000/40.00/400.0/600 V
DC Voltage :1:(1.0 % Rdg + 3 LSD) @ 45 Hz to 400 Hz, 4 V to 400 V ranges
400mV :1:(0.8% Rdg + 1 LSD) @ 4 V to 400 V ranges
Resistance 4.000/40.00/400.0/600 V
:1:(1 .0% Rdg + 2 LSD) @ 4 kOhms to 400 kOhms ranges
AC Current 400.0 Ohms
4.000/40.00/400 .0 kOhms :1:(1.2% Rdg + 3 LSD) @ 400 IJA to 400 rnA ranges, 45 Hz to 400 Hz
DC Current
Frequency 4 .000/40.00 MOhms :1:(1 .0% Rdg + 2 LSD) @ 400 IJA to 400 rnA ranges
Capacitance :1:(0.1% Rdg + 4 LSD)
Temperature 400.0 14000 IJA
Number of 40 .00/400.0 rnA :1:(3.0% Rdg + 5 LSD) @ 400 nF to 40 IJF ranges
temperature inputs 4.000/10.00 A 'F: :1:(1 .8% rdg + 6 ' F) @ >32 ' F to 212 ' F
' C: :1:(1.2% rdg + 3 ' c) @ >0 ' C to 100 ' C
400.0 14000 IJA
40.00/400.0 rnA Single Thermocouple
4 .000/10.00 A
10 Hz to 10 MHz
40.00/400.0 nF
4.000/40.00/400.0/4000 IJF
-40 ' F to 1832 'F
-40 ' C to 1000 ' C
26 www.tech-equipments.comlsales@tech-equipments.com
