AMPROBE$

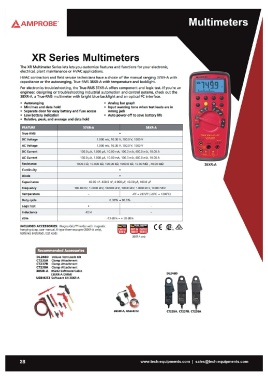

XR Series Multimeters
The XR Mult imeter Series lets lets you custom ize features and functions for your electronic,
electrical, plant maintenance or HVAC applications.
HVAC contractors and field service techn icians have a choice of the manua l rang ing 37XR-A w ith
capacitance or the autoranging, True-RMS 38XR-A w ith temperature and backlight.
For electron ics troubleshooting, the True-RMS 37XR-A offers component and logic test. If you're an
engineer, design ing or troubleshooting industrial automation and control systems, check out the
38XR-A, a True-RMS multimeter with bright blue backlight and an optical PC interface.
• Autoranging • Analog bar graph
• MinImax and data hold • Input warning tone when test leads are in
• Separate door for easy battery and fuse access
wrong jack
• Low battery indication
• Relative, peak, and average and data hold • Auto power-off to save battery life
FEATURE 37XR-A 38XR-A
True-RMS
DC Voltage 1.000 mV, 10.00 V, 100.0 V, 1000V
ACVoltage 1.000 mV, 10 .00 V, 100.0 V, 1000V
DC Current 100.0 1.000 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
AC Current 100.0 1.000 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
Resistance 1000.0 0 ,10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
Continuity
Diode 40.00 nF . 400.0 nF, 4.000 40 .00 400.0
Capacitance 100.00 Hz, 1.0000 kHz, 10.000 kH z, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Frequency
Temperature -4'F - 2372' F (-20' C - 1300' C)
Duty cycle 0 .00% - 90.0%
Logic test
Inductance 40 H
dBm
-1 3 dBm - + 50 dBm
INCLUDED ACCESSORIES: Magne-GripTMholder w ith mag netic
hang ing strap, user manual, K-type thermocouple (38XR-A only),
batteries (insta lled), test leads
38XR-A only
Recommended Accessories DL248D
DL248D Deluxe Test Leads Kit
CT23SA Clamp Attachment
CT237B Clamp Attachment
CT238A Clamp Attachment
38SW-A RS232 Software/Cable
(3BXR-A DMM)
USB-KIT3 Software kit 38XR-A
38SW-A. USB-KITl
28 www.tech-equipments.comlsales@tech-equipments.com
