J}.AMPROBE$

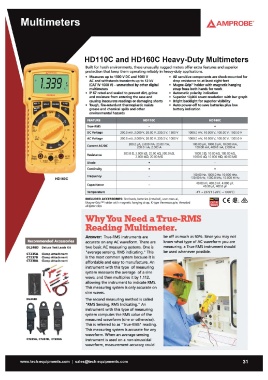

HD110C and HD160C Heavy-Duty Multimeters
Bu ilt for harsh environments, t hese unusually rugged meters offer extra features and superior
protection that keep them operating reliably in heavy-duty applications.
V • Measures up to 1S00 V DC and 1000 V • All sensitive components are shock-mounted for
DC AC and withstands transients up to 12 kV drop resistance to at least eight feet
k (CAT IV 1000 V) - unmatched by other digital
multimeters • Magne-Grip·· holder with magnetic hanging
HD160C strap frees both hands for work
• IP 67 rated and sealed t o prevent dirt. grime
Recommended Accessories and moisture from entering the case and • Aut omatic polarity indication
causing inaccurate readings or damaging shorts • Superior 10,000 count resolution with bar graph
DL248D Deluxe Test Leads Kit • Bright backlight for superior visibility
CT235A Clamp Attachment • Tough, fire-retardant thermoplastic resists • Auto power-off to save batteries plus low
CT237B Clamp Attachment grease and chemical spills and other
CT238A Clamp Attachment environmental hazards battery indication
DL248D FEATURE HD110C .HD160C
True-RMS
CT235A, CT237B, CT23BA DC Voltage - 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V
ACVoltage
Current ACIDC 200.0 mV, 2.000 V, 20.00 V, 200 .0 V, 1500 V 1000.0 mV, 10.000V, 100.00 V, 1000.0 V
Resistance 200.0 mY, 2.000 V, 20.00 V, 200 .0 V, 1000 V 100.00 1000.0 10.000 mA,
Di o d e 200.0 2.000 mA, 20.00 mA, 100.00 rnA, 400.0 rnA, 2.000 A
Continuity 200.0 mA, 2.000 A
Frequency 1000.0 n , 10.00 kn , 100 .00 kn ,
200.0 n , 2.000 kn , 20.00 kn , 200.0 kel, 1000.0 kn , 10.000 Mn , 40.00 Mn
Capacitance
Temperature ..2.000 Mn , 20.00 Mn -.
- 100.00 Hz, 1000.0 Hz, 10.000 kHz,
100.00 kHz, 1000.0 kHz, 10.000 M Hz
-
40.00 nF, 400.0 nF, 4.000
- 40.00 400.0
-4-F - 2372'F (-20'C - 1300'C)
INCLUDED ACCESSORIES: Test leads, batteries (installed), user manual, III
Magne-G ripTM holder w ith magnetic ha nging strap, K-type t hermocouple, th readed
alligator cli ps
WhyYou Need a True-RMS
Reading Multimeter.
Answer: True-RMS instruments are be off as much as 50% . Since you may not
accu rate on any AC waveform. There are know what type of AC waveform you are
two basic AC measuring systems. One is measuring, a True-RMS instrument shou ld
"average sensing, RMS indicating. " This be used whenever possible.
is the most common system because it is
affordable and easy to manufacture. An
instrument with this type of measuring
system measures the average of a sine
wave, and then multiplies it by 1.112,
allowing the instrument to indicate RMS.
This measuring system is only accurate on
sine waves.
The second measuring method is called
" RMS Sensing, RMS Ind icating." An
instrument with this type of measuring
system computes the RMS va lue of the
measured waveform (sine or otherwise).
This is referred to as "True-RMS " reading.
This measuring system is accurate for any
waveform . When an average sensing
instrument is used on a non-sinusoidal
waveform, measurement accuracy could
www.tech-equipments.comlsales@tech-equipments.com 31
