===INSTRUMENTS

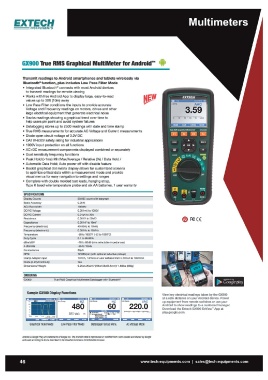

Gl9DD True RMS Graphical MultiMeter for Android™
Transmit readings to Android smartphones and tablets wirelessly via
plus includes Low Pass Filter Mode
• Integrated Bluetooth" connects with most Android devices
to transm it readings for remote viewing
• Works w ith free Android App to display large, easy-to-read
values up to 30ft (10m) away
• Low Pass Filter conditions the inputs to provide accurate
Voltage and Frequency readings on motors, drives and other
large electrical equipment t hat generate electrical noise
• Tracks readings showing a graphical trend over time to
help users pin point and avoid system failures
• Datalogging stores up to 2500 readings w ith date and time stamp
• True RMS measurements for accurate AC Voltage and Current measurements
• Diode open circuit voltage of 3.2V DC
• CAT IV-600V safety rating for industrial applications
• 1000V input protection on all functions
• AC+DC measurement components displayed combined or separately
• Dual sensitivity frequency functions
• Peak Hold (>1 ms) MinIMax/Average I Relative (%) I Data Hold I
• Automatic Data Hold; Auto power off with d isable feature
• Backlit graphical dot matrix display allows for customized screens
to optimize crit ical data with in a measurement mode and provide
visual menus for easy navigation to settings and ranges
• Complete w ith double molded test leads, hanging strap,
Type K bead wire temperature probe and six AA batteries, 1 year warranty
SPECIFICATIONS 50,000 count with bargraph
0.05%
Display Co unts 100 kH z
Basic Accuracy 0.001mV to 1000V
ACV Band width 0.01 to 20A
DCIAC Voltage 0.0010 to 50MO
DC/AC Current 0.001 nF to 10mF
Resistance 40.00Hz to 10kHz
Capa ci tan c e 0.001 Hz to 10MHz
Frequency (electrical) -58 to 1832' F (-SO to 1000' C)
Frequency (electronic) 0.1 to 99.90%
Temperature -70 to 60dB (nine selectable impedances)
Duty Cycle -25 to 125%
d Bm l d BV
4-20mA% 12,000rpm (with optional inductive pickup)
Cond uctance 1mV/A. 10mVlA or user settablefrom 0.1mVlA to 100mVlA
RPM Yes
Clamp Adapter input 9.25x4.25x2.5"(235x1 08x63.5mm)l1.85Ibs (839g)
Diode (3.2V)1Continuity
Dimensions! Weight
ORDERING True RMS Graphical MuttimeterlDatalogger with Bluetooth"
GX900
Sample GX900 Display Functions __ __ View key electrical readings taken by the GX900
__. . "","-'go HZ '''''"-'go VAC at a safe distance on your Android device. Power
up equipment from remote switches or use your
HZ 60 220.0 Android to show readings to a customer/manager.
Download the Extech GX900 ExView·· App at
480 play.google.com.
220VAC
Graphical Trend Mode Low Pass Riter Mode Datalogger Setup Menu AC Voltage Mode
Android & Google Playare tJademillks o( Google Inc. T1Je Android robot is reproduced or modified from VlorI< created and shared by Google
andused according to terms describedin the Creative Commons 3.0Attnbution Ucense.
46 www.tech-equipments.comlsales@tech-equipments.com
