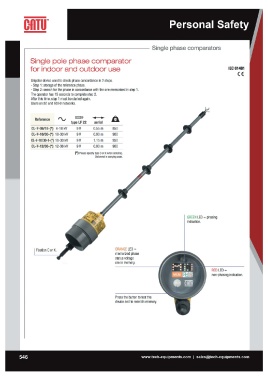

Single pole phase comparator Single phase comparators
for indoor and outdoor use
lEe 61481

CE

Unipolar device used to check phase concordance in 2 steps.
- Step 1: storage of the reference phase.
- Step 2: search for thephase in concordance with theone memorised in step 1.
The operator has 15 seconds to complete step 2.
After this time, step 1 must be started again.
Users on 50 and 60 Hz networks.

......... AReference
'V EEl> aerial

type LF22

CL-7-06/18-(*) 6-18 kV 9V 0.55 m 850
CL-7-10/30-(*) 10-30 kV 9V 0.90 m 900

CL-7-10130-1-(*) 10-30 kV 9V 1.15 m 950
CL-7-12/36-(*) 12-36 kV 9V 0.90 m 900

(*) Please specify type Cor Kwhenordering.

Delivered incarryingcase.

ORANGE LED = GREEN LED = phasing
memorized phase indication.
status vo~age
are in memory. RED LED =
non-phasing indication.
Press the button totest the
device andto reset its memory.
