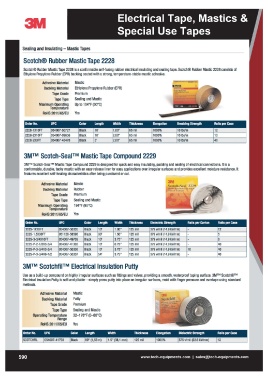

Page 596 - techequipmentscatalogue2016
P. 596
ling and Insulating - Mastic Tapes
Scotch® Rubber Mastic Tape 2228
Scotch® Rubber MasticTape 2228 is aconformableself-fusing rubber electrical insulating and sealing tape. Scotch® Rubber Mastic 2228 consists of
Ethylene Propylene Rubber (EPR) backing coated with a strong,temperature-stable mastic adhesive.
Adhesive Material Mastic
Backing Material Ethlylene Propylene Rubber (EPR)
Premi um
Tape Grade Sealing and Mastic
Up to 194°F(90°C)
Tape Type
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Order No. UPC Color Lenglll Width Thickness Elongation Breaking Strength Rolls per case
2228-1X1OFT 054007-50727 Black 10' 1.00" 65 mil 1000% 10 lbslin 12
2228-2X10FT 054007-09656 Black 10' 2.00" 65 mil 1000% 10 lbslin 10
2228-2X3FT 054007-43478 Black 3' 2.00" 65 mil 1000% 10 lbslin 48
3MTM Scotch-Seal™ Mastic Tape Compound 2229
3MTM Scotch-Seal™ Mastic Tape Compound 2229 is designed for Quick and easy insulating, padding and sealing of electrical connections. It is a
conformable, durable, tacky mastic with an easy release liner for easy applications over irregular surfaces and provides excellent moisture resistance. It
features excellent self-healing characteristics after being punctured or cut.
Adhesive Material Mastic 3M
Backing Material Rubbe r
Premium
Tape Grade Sealing and Mastic
Tape Type 194°F (90°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
3MTM Scotchfil™ Electrical Insulation PUtty
Use as a build-up compound on highly irregular surfaces such as fittings and valves, providing a smooth, waterproof taping surface. 3MTMScotchfjITM
Electrical Insulation Putty is soft and pliable-simply press putty into place on irregular surfaces, mold with finger pressure and overtape using standard
methods.
Adhesive Material Mastic
Putty
Backing Material Premium
Tape Grade Sealing and Mastic
32- 176°F (Q-80°C)
Tape Type
Operating Temperature Yes
Range
RoHS 2011/65/EU
590 www.tech-equipments.comlsales@tech-equipments.com
