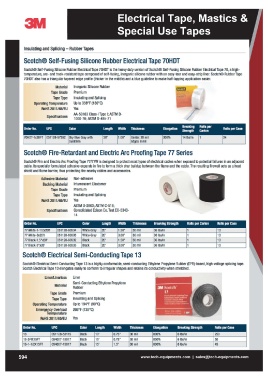

P. 600
ulating and Splicing - Rubber Tapes
Scotch® Self-Fusing Silicone Rubber Electrical Tape 70HDT
Scotch® Self-Fusing Silicone Rubber Electrical Tape 70HDT is the heavy duty version of Scotch® Self-Fusing Silicone Rubber Electrical Tape 70, a high-
temperature, arc- and track-resistant tape composed of self-fusing, inorganic silicone rubber with an easy-tear and easy-strip liner. Scotch® Rubber Tape
70HDT also has a triangular tapered edge profile (thicker in the middle) and ablue guideline to make half-lapping application easier.
Material Inorganic Silicone Rubber
Tape Grade Prem ium
Insulating and Splicing
Tape Type
Operating Temperature Up to 356°F (180°C)
RoHS 2011/65/EU Yes
AA-59163 Class-IType I; ASTM D-
Specifications 1000-76; ASTM D-495-71
Scotch® Fire-Retardant and Electric Arc Proofing Tape 77 Series
Scotch® Fire and Electric Arc Proofing Tape 77ITTW is designed to protect most types of electrical cables when exposed to potential failures in an adjacent
cable. Its specially formulated adhesive expands in fire to form athick char buildup between the flame and the cable.The resulting firewall acts as a heat
shield and flame barrier, thus protecting the nearby cables and accessories.
Adhesive Material Non-adhesive
Backing Material Intumescent Elastomer
Prem ium
Tape Grade Insulating and Splicing
Tape Type Yes
ASTM D-2863; ASTM C-518;
RoHS 2011/65/EU Consolidated Edison Co. Test EO-5343-
14
Specifications
Order No. UPC Color Length Width Thickness Breaking Strength Rolls per Carton Rolls per Case
77 White-l -l/2x2Oft 051128-60334 White-Gray 20' 1.50" 30 mil 36 1bslin 10
77 White-3x2Oft 051128-60335 White-Gray 20' 3.00" 30 mil 361bs/in 10
77 Black-l.5"x20' 051128-60332 Black 20' 1.50" 30 mil 36 1bslin 10
77 Black-3"x20' 051128-60333 Black 20' 3.00" 30 mil 361bs/in 10
Scotch® Electrical Semi-Conducting Tape 13
Scotch® Electrical Semi-Conducting Tape 13 is a highly conformable, semi-conducting Ethylene Propylene Rubber (EPR)-based, high-voltage splicing tape.
Scotch Electrical Tape 13 elongates easily to conform to irregular shapes and retains its conductivity when stretched.
Uner/Linerless Uner
Semi-Conducting Ethylene Propylene
Material Rubber
Premium
Tape Grade Insulating and Splicing
Tape Type
Up to 194°F (90°C)
Operating Temperature
Emergency Overload 266°F (130°C)
Term perature
RoHS 2011/65/EU Yes
Order No. UPC Color Length Width Thickness Elongation Breaking Strength Rolls per Case
13 051128-53115 Black 10' 0.75" 30 mil 800% 6 1bs1in 250
13-3/4X15FT 054007-15017 Black 15' 0.75" 30 mil 800% 6 1bs1in 50
13-1-1/2X15FT 054007-15017 Black 15' 1.5" 30 mil 800% 6 1bs1in 45
594 www.tech-equipments.comlsales@tech-equipments.com
