P. 599
ulating and Splicing - Rubber Tapes

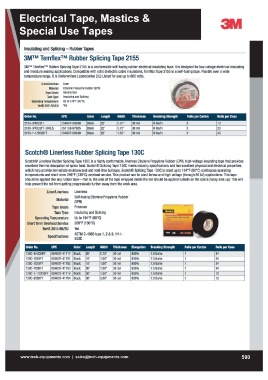

3MTM TemflexTM Rubber Splicing Tape 2155
3MTM Temflex™ Rubber Splicing Tape 2155 is a conformable self-fusing rubber electrical insulating tape. It is designed for low voltage electrical insulating
and moisture sealing applications. Compatible with solid dielectric cable insulations,Temflex Tape 2155 is a self-fusing tape. Flexible over a wide
temperature range, it is Underwriters Laboratories (UL) Listed for use up to 600 volts.
UnerlLinerless Uner
Material Ethylene Propylene Rubber (EPR)
General Use
Tape Grade Insulating and Splicing
Tape Type Up to 176°F(80°C)
Yes
Operating Temperature
RoHS 2011/65IEU
Scotch® linerless Rubber Splicing Tape 130C
Scotch® Unerless Rubber Splicing Tape 130C is a highly conformable, linerless Ethylene Propylene Rubber (EPR), high-voltage insulating tape that provides
excellent thermal dissipation of splice heat Scotch® Splicing Tape 130C meets industry specifications and has excellent physical and electrical properties,
which help provide immediate moisture seal and void-free buildups. Scotch® Splicing Tape 130C is rated up to 194°F (90°C) continuous operating
temperatures and short-term 266°F (130°C) overload service. This product can be used forlow and high-voltage (through 69 kV) applications.This tape
should be applied like any rubber tape-that is, the side of the tape wrapped inside the roll should be applied outside on the splice (tacky side up). This will
help prevent the roll from getting progressively further away from the work area.
UnerlLinerless Unerless
Self-fusing Ethylene Propylene Rubber
Material (EPR)
Premium
Tape Grade Insulating and Splicing
Tape Type
Up to 194°F (90°C)
Operating Temperature 266°F (130°C)
Short Term Overload Service Yes
ASTM D-4388 type 1, 2 &3; HH-I-
RoHS 201 1/65/EU 553C
Specifications
www.tech-equipments.comlsales@tech-equipments.com 593
3MTM TemflexTM Rubber Splicing Tape 2155
3MTM Temflex™ Rubber Splicing Tape 2155 is a conformable self-fusing rubber electrical insulating tape. It is designed for low voltage electrical insulating
and moisture sealing applications. Compatible with solid dielectric cable insulations,Temflex Tape 2155 is a self-fusing tape. Flexible over a wide
temperature range, it is Underwriters Laboratories (UL) Listed for use up to 600 volts.
UnerlLinerless Uner
Material Ethylene Propylene Rubber (EPR)
General Use
Tape Grade Insulating and Splicing
Tape Type Up to 176°F(80°C)
Yes
Operating Temperature
RoHS 2011/65IEU
Scotch® linerless Rubber Splicing Tape 130C
Scotch® Unerless Rubber Splicing Tape 130C is a highly conformable, linerless Ethylene Propylene Rubber (EPR), high-voltage insulating tape that provides
excellent thermal dissipation of splice heat Scotch® Splicing Tape 130C meets industry specifications and has excellent physical and electrical properties,
which help provide immediate moisture seal and void-free buildups. Scotch® Splicing Tape 130C is rated up to 194°F (90°C) continuous operating
temperatures and short-term 266°F (130°C) overload service. This product can be used forlow and high-voltage (through 69 kV) applications.This tape
should be applied like any rubber tape-that is, the side of the tape wrapped inside the roll should be applied outside on the splice (tacky side up). This will
help prevent the roll from getting progressively further away from the work area.
UnerlLinerless Unerless
Self-fusing Ethylene Propylene Rubber
Material (EPR)
Premium
Tape Grade Insulating and Splicing
Tape Type
Up to 194°F (90°C)
Operating Temperature 266°F (130°C)
Short Term Overload Service Yes
ASTM D-4388 type 1, 2 &3; HH-I-
RoHS 201 1/65/EU 553C
Specifications
