P. 654

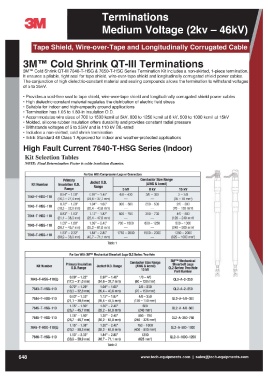

Ģ Cold Shrink QT-III Terminations
3M™ Cold Shrink QT-1I17640-T-HSG & 7650-T-HSG Series Termination Kit includes a non-skirted, 1-piece termination.
It ensures a pliable, tight seal for tape shield, wire-over-tape shield and longitudinally corrugated shield power cables.
The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages
of 5 to 35kV.
• Provides a void-free seal to tape shield, wire-over-tape shield and longitudinally corrugated shield power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for indoor and high-ampacity ground applications
• Termination has 1.05 to 1.80-in insulation 0.0.
• Accommodates wire sizes of 700 to 1500 kcmil at 5kV, 600 to 1250 kcmil at 8 kV, 500 to 1000 kcmil at 15kV
• Molded, silicone rubber insulation offers durability and provides constant radial pressure
• Withstands voltages of 5 to 35kV and is 110 kV BIL-rated
• Includes a non-skirted, cold shrink termination
• IEEE Standard 48 Class 1 Approved for indoor and weather-protected applications
High Fault Current 7640-T-HSG Series (Indoor)
Kit Selection Tables
NOTE: Final Determination Factor is cable insulation diameter.
For Use With Compression Lugs or Connectors
Kit Number Primary Jacket 0.0. Conductor Size Range
Insulation 0.0. Range (AWG & kcmil)
7642-T-HSG-ll0
7643-T-HSG-ll0 Range 0.97" -1.48" 5kV SkV 15 kV
7644-T-HSG-ll0 (24,6 - 37,7 mm) 4/0 - 400
7645-T-HSG-ll0 0.64" - 1.08" 3/0 - 300 2- 2/0
7646-T-HSG-ll0 (16,3 - 27,4 mm) (35-70 mm~
0.72" - 1.29" 1.04" - 1.60" 300 - 500 250 - 500 2/0 - 300
(70 -150 mm~
(18,3 - 32,8 mm) (26,4 - 40,6 mm)
0.83" - 1.53" 1.12" -1 .87" 500 - 750 350 - 700 4/0 - 500
(21,1 - 38,9 mm) (28,4 - 47,5 mm) 700 -1500 600 -1250 (120 - 240 mm~
1.05" - 1.80" 1.39" - 2.40" 500 -1000
(26,7 - 45,7 mm) (35,2 - 61,0 mm) (240 - 500 mm~
1.53" - 2.32" 1.84" - 2.80" 1750 - 2000 1500 - 2000 1250 - 2000
(625 - 1000 mm~
(38,9 - 58,9 mm) (46,7 - 71,1 mm)
Table 1
For Use With 3MTM Mechanical ShearboH Lugs QLl Series: Two Hole
Kit Number Primary Insulation Jacket 0.0. Range Conductor Size Range 3MTM Mechanical
0.0. Range (AWG & kcmil) Shearbolt Lugs
7642-T-HSG-ll OIL) 15 kV
7643-T-HSG-ll0 QL2 Series: Two Hole
7644-T-HSG-ll0 0.69" -1.22" 0.97" - 1.48" 1/0 - 4/0 Part Number lU
7645-T-HSG-ll0 (17,5 - 31 ,0 mm) (24,6 - 37,7 mm) (60-120 mm~ QL2-A-2-250
7645-T-HSG-ll0
7645-T-HSG-ll OIL) 0.72" -1 .29" 1.04" -1.60" 2/0- 250 QL2-A-2-250
7646-T-HSG-ll0 (18,3 - 32,8 mm) (26,4 - 40,6 mm) (70 -150 mm')
QL2-A-1/0-350
0.83" -1.53" 1.12" -1.87" 4/0- 350
(21,1 -38,9 mm) (28,4 - 47,5 mm) (120 -150 mm~ QL2-A-4/Q-600
1.05" -1 .80" 1.39" - 2.40" 500 QL2-A-350-750
(26,7 - 45,7 mm) (35,2 - 61 ,0 mm) (240 mm')
QL2-A-50D-l000
1.05" -1 .80" 1.39" - 2.40" 500-750
(26,7 - 45,7 mm) (35,2 - 61 ,0 mm) (240 - 325 mm~ QL2-A-1000-1250
1.15" -1.98" 1.39" - 2.40" 750 -1000
(29,2 - 50,3 mm) (35,2 - 61 ,0 mm) (400 - 500 mm~
1.53" - 2.32" 1.84" - 2.80" 1250
(38,9 - 58,9 mm) (46,7 - 71 ,1 mm) (625 mm')
Table 2
648 www.tech-equipments.comlsales@tech-equipments.com
