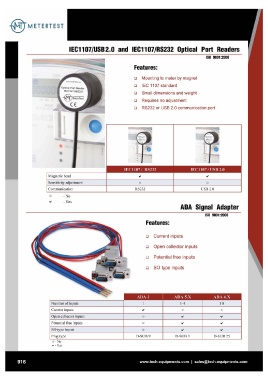

P. 922
TERTEST
IEC1107/USB2.0 and IEC1107/RS232 Optical Port Readers
ISO 9001 :2008
Features:
o Mounting to meter by magnet
o IEC 1107 standard
o Small dimensions and weight
o Requires no adjustment
o RS232 or USB 2.0 communication port
Magnetic head IEClI071 RS232 IECll07 / USB 2.0
Sensitivity adjustment
Communication o o
RS232 USB 2.0
o - No
v - Yes
ADA Signal Adapter
ISO 9001 :2008
Features:
o Current inputs
o Open collector inputs
o Potential free inputs
o SO type inputs
Number of inputs ADA-\ ADA-S.X ADA-6.X
Current inputs 1-4 1-8
Open collector inputs v
Potential free inputs 0 0
0
SO type inputs 0 v v
Plug type 0 v v
0 - No v v
'" - Yes D-SUB 9
D-SUB 9 D-SUB 25
916 www.tech-equipments.comlsales@tech-equipments.com
