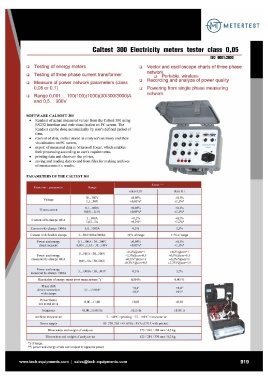

Caltest 300 Electricity meters tester class 0,05
ISO 9001 :2000
o Testing of energy meters o Vector and oscilloscope charts of three phase
network
o Testing of three phase current transformer o Portable, wireless
o Measure of power network parameters (class o Recording and analyze of power quality
0,050rO,1)
o Powering from single phase measuring
oRange 0,001 ... 100(100)(1 000)(30/300/3000)A network
and 0,5 ... 300V
SOFTWARE CALSOFT 300 e' it i i ~i!ft
• Readout of actual measured values from the Caltest 300 using ....- .,2 ",,2_ ~ _
RS232 interface and their visualisation on PC screen. The .•'· •Oi i•'/1"2 _,
Readout can be done automatically by user's defined period of
time,
• readout of data, earlier stored in analyzer's memory and their
vis ualisation on PC screen,
• export of measured data to Microsoft Excel, which enables
their processing according to user's requirements,
• printing data and charts on the printer,
• saving and reading data to and fro m fi les for making archives
of measurement's resu lts.
PARAMETERS OF THE CALTEST 300
Voltage 30.. .300Y ±0,05% ±O,I%
0,5...30Y ±0,05%* ±O,I%*
Direct current O,I...IOOA ±0,05% ±O, I%
O,OOl. ..O, IA ±0,05%* ±O,I%*
Current with clamps 100A 5... 100A ±O,2% ±0,2%
0,05 ...5A ±0,2%* ±0,2%*
Current with clamps 1000A 5,0... 1000A 0,5% 0,5%
Current with fl ex ible clamps 0.. .30A/300A/3000A ± I% of range ± I% of range
Power and energy 0, 1... 1OOA I 30...300Y ±O,05% ±O, I%
direct measure 0,00 1...0, IA I 30... 300Y ±O,05%* ±O, I%*
Power and energy 5... 100A I 30...300Y ±0,2%@cos= 1 ±0,2%@cos= 1
measured by clamps 100A O,05 ...5A I 30.. 300Y ±0,3%@cos=0,5 ±0,3%@cos=0,5
±0,2%* @cos= 1 ±0,2%* @cos= 1
± 0 ,2%* @ cos = 0,5 ±0,2%* @cos=0,5
Power and energy 5... 1OOOA I 30.. .300Y 0,5% 0,5%
measured by clamps 1000A
Resolution of energy meter error measurement "E" 0,00 1% 0,001%
Phase shift O,O...±360,0°
direct connect ion
with clamps
Power factor O,OO ...± I,OO ±0,01 ±0,01
cos q> and s in q>
Frequency 45 ,00...65,00Hz ± O,0 5 H z ±0,05Hz
Ambient temperature - 5 ..+40°C operating, - 25 ...+60°C transportation
Power supply 85 ..230..265 I 45 ..65Hz ! 8YA ( 12YA with printer)
*) of range, 919
**) power and energy errors with respect to apparent power
