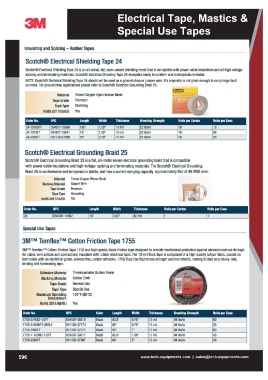

Page 602 - techequipmentscatalogue2016

ulating and Splicing - Rubber Tapes

Scotch® Electrical Shielding Tape 24

Scotch® Electrical Shielding Tape 24 is an all-metal, flat, open-weave shielding mesh that is compatible with power cable insulations and all high-voltage
splicing and terminating materials. Scotch® Electrical Shielding Tape 24 elongates easily to conformand is temperaturestable.

NOTE:Scotch® Electrical Shielding Tape 24 should not be used as a ground strap or jumper wire. It's ampacity is not great enough tocarry large fault
currents. For ground strap applications please refer to Scotch® Electrical Grounding Braid 25.

Material linned Copper Open Weave Mesh
Tape Grade Premium
Shielding
Tape Type Yes
RoHS 2011/65/EU

Order No. UPC Length Width Thickness Breaking Strength Rolls per Carton Rolls per case

24-1Xl00FT 054007-15058 100' 1.00" 16mil 22 1bs1in 10 10
24-1X15FT 054007-15041 15' 1.00" 16 mil 22 1bs1in 10 50
24-2XlOFT 051128-57289 10' 2.00" 16mil 22 1bs1in 20 20

Scotch® Electrical Grounding Braid 25

Scotch® Electrical Grounding Braid 25 is a flat, all-metal woven electrical grounding braid that is compatible
with power cable insulations and high-voltage splicing and terminating materials.The Scotch® Electrical Grounding
Braid 25 is conformable and temperature stable, and has a current carrying capacity approximately that of #6 AWG wire.

Material Tinned Copper Woven Braid
Backing Material Copper Wire
Premium
Tape Grade Grounding
Tape Type Yes

RoHS 2011/65/EU

Special Use Tapes

3MTMTemflexTMCotton Friction Tape 1755

3MTM TemflexTMCotton Friction Tape 1755 is ahigh-grade, black frictiontape designed to provide mechanical protection against abrasion and cut-through
for cable, wire splices and connections insulated with rubber electrical tape. The 13-mil thick tape is composed of ahigh-quality cotton fabric, coated on

bothsides with an electrical-grade, solvent-free, rubber adhesive. 1755 Tape has high break strength and low stretch, making it ideal as a heavy-duty
binding and harnessing tape.

Adhesive Material Thermosetable Rubber Resin
Cotton Cloth
Backing Material General Use
Special Use
Tape Grade 176°F (BO°C)

Tape Type Yes
Maximum Operating

Temperature
RoHS 2011/65/EU

Order No. UPC Color Length Width Thickness Breaking Strength Rolls per case

1755-3/4X82-1/2FT 054007-50216 Black 82.5' 0.75" 13 mil 481bsJin 60
1755-3/4X60FT-20RLS 051128-57173 Black 60' 0.75 " 13 mil 481bs/in 20
1755-1X60FT 051128-57211 Black 50' 1" 13 mil 481bsJin 60
1755-1-1 /2X82-1/2FT 054007-50217 Black 82.5' 1.50 " 13 mil 481bs/in 30
1755-2X60FT 0511 28-57267 Black 50' 2" 13 mil 481bsJin 30
