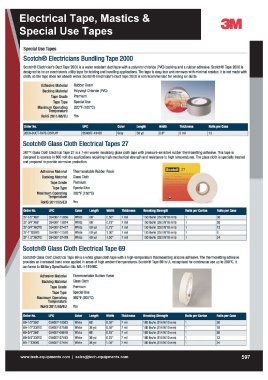

Page 603 - techequipmentscatalogue2016
P. 603
cial Use Tapes
Scotch® Electricians Bundling Tape 2000
Scotch® Electrician's Duct Tape 2000 is awater resistant duct tape with a polyvinyl chloride (PVC) backing and a rubber adhesive. Scotch® Tape 2000 is
designed to be an electrician's utility tape for holding and bundling applications. The tape is easy tear and removes with minimal residue. It is not made with
cloth, so the tape does not absorb water.Scotch® Electrician's Duct Tape 2000 is not recommended for sealing air ducts.
Adhesive Material Rubber Resin
Backing Material Polyvinyl Chloride (PVC)
Premium
Tape Grade Special Use
Tape Type 220°F (105°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Scotch® Glass Cloth Electrical Tapes 27
3MTM Glass Cloth Electrical Tape 27 is a 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive. This tape is
designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The glass cloth is specially treated
and prepared to provide corrosion protection.
Adhesive Material Thermosetable Rubber Resin emm 27
Backing Material Glass Cloth
Premium (( I
Tape Grade Special Use
Tape Type 302°F (150°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Scotch® Glass Cloth Electrical Tape 69
Scotch® Glass Cloth Electrical Tape 69 is awhite glass cloth tape with ahigh-temperature thermosetting silicone adhesive.The thermosetting adhesive
provides an increased bond once applied in areas of high ambient temperatures. Scotch® Tape 69 is UL recognized for continuous use up to 200°C. It
conforms to Military Specification No. MIL-I-19166C.
Adhesive Material Thermosetable Rubber Resin
Backing Material Glass Cloth
Premium
Tape Grade Special Use
Tape Type 392°F (200°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Order No. UPC Color Length Width Thickness Breaking Strength Rolls per Carton Rolls per Case
69-112"X66' 054007-1 0083 White 66' 0.50" 7mil 180 Ibstin (314 Nl10 mm) 50
69-1/2"X36YD 054007-27548 White 36yd 0.50" 7 mil 180 Ibstin (314 Nl10 mm) 18
69-3/4"X66' 054007-09910 White 66' 0.75" 7mil 180 Ibstin (314 Nl10 mm) 50
69-3/4"X36YD 054007-27493 White 36yd 0.75" 7 mil 180 Ibstin (314 Nl10 mm) 12
69-1 "X36YD 054007-27494 White 36yd 1.00" 7mil 180 Ibstin (314 Nl10 mm) 24
www.tech-equipments.comlsales@tech-equipments.com 597
Scotch® Electricians Bundling Tape 2000
Scotch® Electrician's Duct Tape 2000 is awater resistant duct tape with a polyvinyl chloride (PVC) backing and a rubber adhesive. Scotch® Tape 2000 is
designed to be an electrician's utility tape for holding and bundling applications. The tape is easy tear and removes with minimal residue. It is not made with
cloth, so the tape does not absorb water.Scotch® Electrician's Duct Tape 2000 is not recommended for sealing air ducts.
Adhesive Material Rubber Resin
Backing Material Polyvinyl Chloride (PVC)
Premium
Tape Grade Special Use
Tape Type 220°F (105°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Scotch® Glass Cloth Electrical Tapes 27
3MTM Glass Cloth Electrical Tape 27 is a 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive. This tape is
designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The glass cloth is specially treated
and prepared to provide corrosion protection.
Adhesive Material Thermosetable Rubber Resin emm 27
Backing Material Glass Cloth
Premium (( I
Tape Grade Special Use
Tape Type 302°F (150°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Scotch® Glass Cloth Electrical Tape 69
Scotch® Glass Cloth Electrical Tape 69 is awhite glass cloth tape with ahigh-temperature thermosetting silicone adhesive.The thermosetting adhesive
provides an increased bond once applied in areas of high ambient temperatures. Scotch® Tape 69 is UL recognized for continuous use up to 200°C. It
conforms to Military Specification No. MIL-I-19166C.
Adhesive Material Thermosetable Rubber Resin
Backing Material Glass Cloth
Premium
Tape Grade Special Use
Tape Type 392°F (200°C)
Maximum Operating Yes
Temperature
RoHS 2011/65/EU
Order No. UPC Color Length Width Thickness Breaking Strength Rolls per Carton Rolls per Case
69-112"X66' 054007-1 0083 White 66' 0.50" 7mil 180 Ibstin (314 Nl10 mm) 50
69-1/2"X36YD 054007-27548 White 36yd 0.50" 7 mil 180 Ibstin (314 Nl10 mm) 18
69-3/4"X66' 054007-09910 White 66' 0.75" 7mil 180 Ibstin (314 Nl10 mm) 50
69-3/4"X36YD 054007-27493 White 36yd 0.75" 7 mil 180 Ibstin (314 Nl10 mm) 12
69-1 "X36YD 054007-27494 White 36yd 1.00" 7mil 180 Ibstin (314 Nl10 mm) 24
www.tech-equipments.comlsales@tech-equipments.com 597
