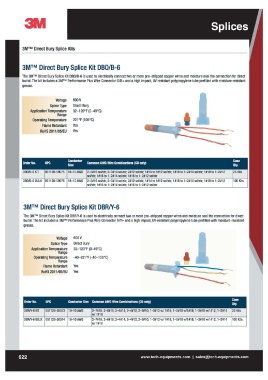

P. 628
M Direct Bury Splice Kits
3MTM Direct Bury Splice Kit DBO/B-6
The 3MTM Direct Bury Splice Kit DBO/B-6 is used to electrically connect two or more pre-stripped copper wires and moisture seal the connection for direct
burial. The kit includes a 3MTM Performance Plus Wire Connector OIB+ and ahigh impact, LN-resistant polypropylene tube prefilled with moisture-resistant
grease.
Voltage 600V
Splice Type Direct Bury
Application Temperature 32-120°F(0-49°C)
Range 221°F (105°C)
Operating Temperature Yes
Yes
Flame Retardant
RoHS 2011/65/EU
Order No. UPC ~~ductor Common AWG Wire Combinations (CU only) :e
25 Kits
OBOIB-6 KIT 051128-59075 18-10 AWG 2-3#16 soVstr; 2- 3#14 sol/str; 2#12 soVstr; 1#14 to 1#12 soVstr; 1#18 to 1- 2#14 soVstr; 1#18 to 1-2#12
OBO/B-6 BULK 051128-59076 18-10 AWG soVstr; 1#16 to 1- 2#14 soVstr; 1#16 to 1- 2#12 soVstr
2- 3#16 sol/str; 2- 3#14 sol/str; 2#12 sol/str; 1#14 to 1#12 sol/str; 1#18 to 1- 2#14 soVstr; 1#18 to 1- 2#12
soVstr; 1#16 to 1- 2#14 sol/str; 1#16 to 1- 2#12 sol/str
3MTM Direct Bury Splice Kit DBRN-6
The 3MTM Direct Bury Splice Kit DBRIY-6 is used to electrically connect two or more pre-stripped copper wires and moisture seal the connection for direct
burial. The kit includes a 3MTM Performance Plus Wire Connector RIY+ and a high impact, UV-resistant polypropylene tube prefilled with moisture-resistant
grease.
Voltage 600V
Splice Type Direct Bury
Application Temperature 32-120°F (0-49°C)
Range -40-221 OF (-40-1 05°C)
Operating Temperature
Yes
Range Yes
Flame Retardant
RoHS 2011/65/EU
Order No. UPC Conductor Size Common AWG Wire Combinations (CU only) Case
Qty.
OBRIY-6 KIT 051128-58573 18-10AWG 2- 7#18; 2-6#16; 2-4#14; 2-4#12; 2- 3#10; 1-3#12 wI 1#18; 1- 2#10 w/1#18; 1- 2#10 w/1#12; 1-2#14 25 Kits
OBRIY-6 BULK 051128-58574 18-1 0AWG w/ 1#18
100 Kits
2- 7#18; 2-6#16; 2-4#14; 2-4#12; 2- 3#10; 1-3#12 w/ 1#18; 1- 2#10 w/1 #18; 1- 2#10 w/1 #12; 1- 2#14
w/1#18
622 www.tech-equipments.comlsales@tech-equipments.com
