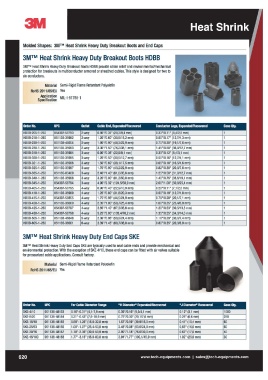

ded Shapes: 3MTM Heat Shrink Heavy Duty Breakout Boots and End Gaps
3MTM Heat Shrink Heavy Duty Breakout Boots HDBB
3MTM Heat Shrink Heavy Duty Breakout Boots HDBB provide strain relief and environmental/mechanical
protection for breakouts in multiconductor armored or sheathed cables. This style is designed for two to
six conductors.
Material Semi-Rigid Flame Retardant Polyolefin
RoHS 2011/65/EU Yes
SpAepcpifliiccaattiioonn MIL-I-81765-1
Order No. UPC Outlet cable End, ExpandedIRecovered Conductor Legs, ExpandedIRecovered Case Qty.
HDBB-205-1-250 054007-58793 2-way 0.80"/0.37" (20,3/9,4 mm) 0.33"/0.11 " (8,4/2,8 mm)
HDBB-21 0-1-250 051135-35992 2-way 1.20"/0.60" (30,5/15,2 mm) 0.50"/0.17" (12,7/4,3 mm)
HDBB-220-1-250 051138-46654 2-way 1.90"/0.90" (48,3/22,9 mm) 0.75"/0.30" (19,m ,6 mm)
HDBB-230-1-250 051135-35993 2-way 3.00"/1 .50" (76,2138,1 mm) 1.45"/0.50" (36,8/1 2,7 mm)
HDBB-310-1-250 051135-35994 3-way 0.90"/0.36" (22,9/9,1 mm) 0.33"/0.12" (8,4/3,1 mm)
HDBB-320-1-250 051135-35995 3-way 1.20"/0.50" (30,5/12,7 mm) 0.50"/0.16" (12,7/4,1 mm)
HDBB-321-1-250 051135-35996 3-way 1.50"/0.69" (38,1/17,5 mm) 0.65"/0.18" (16,5/4,6 mm)
HDBB-325-1-250 051135-35997 3-way 1.70"/0.90" (43,2122,9 mm) 0.82"/0 .30" (20,8n,6 mm)
HDBB-335-1-250 051135-03409 3-way 2.40"/1.40" (61 ,0/35,6 mm) 1.25"/0.50" (31 ,8/12,7 mm)
HDBB-340-1-250 051135-35998 3-way 3.20"/2.00" (81 ,3/50,8 mm) 1.40"/0.75" (35,6/1 9,1 mm)
HDBB-345-1-250 054007-58794 3-way 4.90"/2.32" (124,5/58,9 mm) 2.00"/1 .00" (50,8/25,4 mm)
HDBB-405-1-250 054007-58795 4-way 0.90"/0.43" (22,9/10,9 mm) 0.28"/0.11 " (7,1/2,8 mm)
HDBB-410-1-250 051135-35999 4-way 1.25"/0.80" (31 ,8120,3 mm) 0.50"/0.19" (12,7/4,8 mm)
HDBB-415-1-250 054007-58855 4-way 1.75"/0.98" (44,5/24,9 mm) 0.79"/0 .28" (20,1n,1 mm)
HDBB-420-1-250 051135-36000 4-way 2.35"/1 .00" (59,7/25,4 mm) 1.00"/0.35" (25,4/8,9 mm)
HDBB-425-1-250 054007-58797 4-way 2.65"/1 .40" (67,3/35,6 mm) 1.20"/0.53" (30,5/13,5 mm)
HDBB-430-1-250 054007-58798 4-way 5.25"/3 .00" (133,4n6 ,2 mm) 1.35"/0.55" (34,3/14,0 mm)
HDBB-505-1 -250 051138-46648 5-way 2.36"/0.96" (59,9/24,4 mm) 1.18"/0 .29" (30,On,4 mm)
HDBB-605-1-250 051135-36001 6-way 2.39"/1 .45" (60,7/36,8 mm) 0.80"/0.35" (20,3/8,9 mm)
3MTMHeat Shrink Heavy Duty End Caps SKE
3MTM Heat Shrink Heavy Duty End Caps SKE are typically used to seal cable ends and provide mechanical and
environmental protection.With the exception of SKE 411 D, these end caps can be fitted with air valves suitable
for pressurized cable applications. Consult factory.
Material Semi-Rigid Flame Retardant Polyolefin
RoHS 2011/65/EU Yes
Order No. UPC For Cable Diameter Range "H Diameter" Expanded/Recovered nJ Diameter" Recovered case Qty.
SKE-4/10 051138-48153 0.16"-0.31 " (4,1-7,9 mm) 0.39"/0.16" (9,9/4,1 mm) 0.12" (3,1 mm) 1000
SKE-8/20 051138-48154 0.31 "-0.43" (7,9-10,9 mm) 0.79"/0.30" (20,m ,6 mm) 0.26" (6,6 mm) 250
SKE-15/40 051 138-48155 0.59"-1 .26" (15,0-32,0 mm) 1.57"/0.59" (39,9/15,0 mm) 0.41 " (10,4 mm) 60
SKE-25/63 051138-48156 1.00"-1 .97" (25,4-50,0 mm) 2.48"/0.98" (63,0/24,9 mm) 0,63" (16,0 mm) 60
SKE-30ns 051 138-48157 1.18"-2.36" (30,0-59,9 mm) 2.99"/1 .18" (76,0/30,0 mm) 0.67" (17,0 mm) 40
SKE-45/100 051138-48158 1.77"-3.15" (45,0-80,0 mm) 3.94"/1.77" (100,1/45,0 mm) 1.02" (25,9 mm) 30
620 www.tech-equipments.comlsales@tech-equipments.com
