P. 659

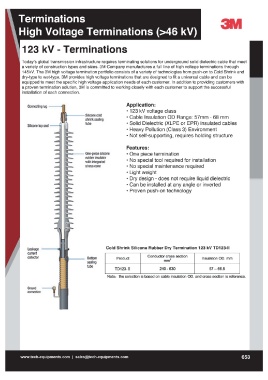

kV - Terminations
Today's global transmission infrastructure requires terminating solutions for underground solid dielectric cable that meet
a variety of construction types and sizes. 3M Company manufactures a full line of high voltage terminations through
145kV. The 3M high voltage termination portfolio consists of a variety of technologies from push-on to Cold Shrink and
dry-type to wet-type. 3M provides high voltage terminations that are designed to fit a universal cable and can be
equipped to meet the specific high voltage application needs of each customer. In addition to providing customers with
a proven termination solution , 3M is committed to working closely with each customer to support the successful
installation of each connection .
SIioooe top seal ~-- Sicooe COld Application:
• 123 kV voltage class
~seaJng • Cable Insulation OD Range : 57mm - 68 mm
• Solid Dielectric (XLPE or EPR) insulated cables
tube • Heavy Pollution (Class 3) Environment
• Not self-supporting, requires holding structure
One·piece $: COne Features:
rubber insU3:or • One piece termination
with integra:ed • No special tool required for installation
stress cone • No special maintenance required
• Light weight
• Dry design - does not require liquid dielectric
• Can be installed at any angle or inverted
• Proven push-on technology
Cold Shrink Silicone Rubber Dry Termination 123 kV TD123-11
~_ _ Bouom Product Conductor cross section Insulation 00. mm
mm2
~
tube TD123- II 240 - 630 57 -66.5
Note : the selection is based on cable insulation 00. and cross section is reference.
www.tech-equipments.comlsales@tech-equipments.com 653
