P. 657

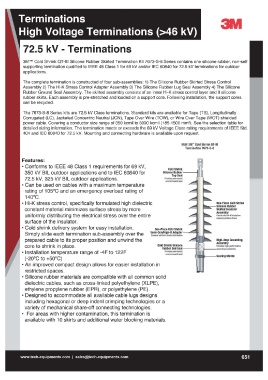

5 kV - Terminations
3M™ Cold Shrink QT-III Silicone Rubber Skirted Termination Kit 7673-S-8 Series contains one silicone rubber, non-self
supporting termination qualified to IEEE 48 Class 1 for 69 kV and/or IEC 60840 for 72.5 kV terminations for outdoor
applications.
The complete termination is constructed of four sub-assemblies: 1) The Silicone Rubber Skirted Stress Control
Assembly 2) The Hi-K Stress Control Adapter Assembly 3) The Silicone Rubber Lug Seal Assembly 4) The Silicone
Rubber Ground Seal Assembly. The skirted assembly consists of an inner Hi-K stress control layer and 8 silicone
rubber skirts. Each assembly is pre-stretched and loaded on a support core. Following installation, the support cores
can be recycled.
The 7673-S-8 Series kits are 72.5 kV Class terminations. Standard kits are available for Tape (TS), Longitudinally
Corrugated (LC), Jacketed Concentric Neutral (JCN), Tape Over Wire (TOW), or Wire Over Tape (WOT) shielded
power cable. Covering a conductor size range of 350 kcmil to 3000 kcmil (185-1500 mm2). See the selection table for
detailed sizing information. The termination meets or exceeds the 69 kV Voltage Class rating requirements of IEEE Std.
404 and IEC 60840 for 72.5 kV. Mounting and connecting hardware is available upon request.
NEW 3M'· Cold Shrink aT-III
Termination 7673-S-8
Features:
• Conforms to IEEE 48 Class 1 requirements for 69 kV, Cold Shrink
350 kV BIL outdoor applications and to IEC 60840 for Silicone Rubber---tl
72.5 kV, 325 kV BIL outdoor applications.
Top Seal
• Can be used on cables with a maximum temperature
PrO'lides pe en.vonmentalse
rating of 105°C and an emergency overload rating of
140°C.
• Hi-K stress control, specifically formulated high dielectric One-Piece Cold Shrink
constant material minimizes surface stress by more Silicone Rubber
uniformly distributing the electrical stress over the entire Skirted Insulator
surface of the insulator. Assembly
coextruded Hi·KI1nsIJlatlon
reduces sur1ace S1ress
• Cold shrink delivery system for easy installation. One-Piece Cold Shrink
Simply slide each termination sub-assembly over the =;.c:~~~;!!:~ ---.,..c::;;;;~
prepared cable to its proper position and unwind the High-Amp Grounding
core to shrink in place.
• Installation temperature range of -4F to 122F Cold Shrink Silicone c Assembly
(-20°C to +50°C) Rubber End Seal--tf _ PrOYldes hIgn·perro"nance
~ngconnecllon
PrO'lides pe en.vonmentalse
• An improved compact design allows for easier installation in
restricted spaces.
• Silicone rubber materials are compatible with all common solid
dielectric cables, such as cross-linked polyethylene (XLPE),
ethylene propylene rubber (EPR), or polyethylene (PE).
• Designed to accommodate all available cable lugs designs
including hexagonal or deep indent crimping technologies or a
variety of mechanical share-off connecting technologies.
• For areas with higher contamination, this termination is
available with 10 skirts and additional water blocking materials.
www.tech-equipments.comlsales@tech-equipments.com 651
