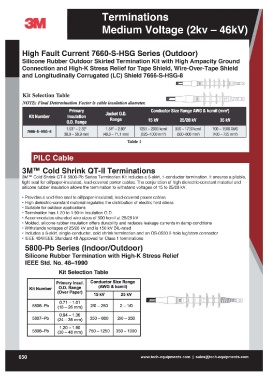

P. 656
h Fault Current 7660-S-HSG Series (Outdoor)
Silicone Rubber Outdoor Skirted Termination Kit with High Ampacity Ground
Connection and High-K Stress Relief for Tape Shield, Wire-Over-Tape Shield
and Longitudinally Corrugated (LC) Shield 7666-S-HSG-8
Kit Selection Table
NOTE: Final Determination Factor is cable insulation diameter.
3M™ Cold Shrink QT-II Terminations
3M™ Cold Shrink QT-1I5800-Pb Series Termination Kit includes a 6-skirt, 1-conductor termination. It ensures a pliable,
tight seal for oil/paper-insulated, lead-covered power cables. The conjunction of high dielectric-constant material and
silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
• Provides a void-free seal to oil/paper-insulated, lead-covered power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for outdoor applications
• Termination has 1.20 to 1.90-in insulation 0.0.
• Accommodates stranded wire sizes of 500 kcmil at 25/28 kV
• Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
• Withstands voltages of 25/28 kV and is 150 kV BIL-rated
• Includes a 6-skirt, single-conductor, cold shrink termination and an OS-0500 2-hole lug/stem connector
• IEEE 404/IEEE Standard 48 Approved for Class 1 terminations
5800-Pb Series (Indoor/Outdoor)
Silicone Rubber Termination with High-K Stress Relief
IEEE Std. No. 48-1990
Kit Selection Table
Primary Insul. Conductor Size Range
Kit Number 0.0. Range (AWG & kcmil)
(Over Paper) 15 kV 25 kV
0.71 - 1.01 oj
(18 -26 mm)
5806-Pb 2/0 - 250 2 -1/0
5807-Pb 0.94 -1.36 2/0 - 250
(24 - 35 mm) 350 -600
5808-Pb 1.20 -1.90
(30 -48 mm) 750-1250 350-1000
