P. 733

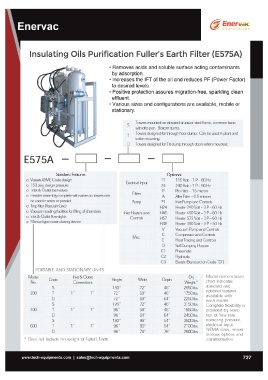

ulating Oils Purification Fuller's Earth Filter (ES7SA)
• Removes acids and soluble surface acting contaminants
by adsorption.
• Increases the 1FT of the oil and reduces PF (Power Factor)
to desired levels.
• Positive protection assures migration-free, sparkling clean
effluent.
• Various sizes and configurations are available, mobile or
stationary.
s T0I'vaS mounted on elevated stn.ctLJ"a1 steel trame, common base
wiltl drip pan. Bottom dump.
T T0I'vaS designed for hough fiocr dump. Can be used in plant and
trailer mounting.
o T0I'vaS designed for Tilt dump through doors when mounted.
E575A
Standard Features Electrical Input Optional
o VesselsASME Code design Filters 11 115 Volt - 1 P- 60 Hz
o 150 psig design pressure Pump 24 240VoIt-l P-5OHz
o Inlet &Outlet ball valves P Pre-Filter - 15 micron
o Header assembly complete with valves so toVl.ers can Inlet Heaters and
Conrols A Nter Filter - 0.5 micron
be used in series or parallel
Misc. Pl Inlet Pump and Controls
o Trap filter (Vacuum line) H24 Heater 240 Volt - 3 P- 60 Hz
H46 Heater 460 Volt - 3 P- 60 Hz
o Vacwm loading facilities for filling of chambers H57 Heater 575 Volt - 3 P- 60 Hz
o Inlet &Outlet flow sights H38 Heater 380 Volt - 3 P- 50 Hz
o Manual type cover closing device
V Vacuum Pump and Controls
C Compressor and Comols
E Heat Tracing and Controls
0 Self Dumping Hopper
Cl Pneumatic
C2 Hydraulic
C3 Electric (Standard on Code "0")
PORTABLE AND STATIONARY UNITS
Model Code Inlet &Outlet Height Width Depltl Dry Model nomenclature
No. Connections Weight • cha rt indicates
200 S 1" 1" 150" 72" 48 " 29501bs. standard a nd
72" 68" 48" 17501bs. optio nal features
400 T 1" 1" 72" 68" 64" 22501bs. ava ilable with
0 170" 72" 48" 31501bs. each model .
600 1" 1" 96" 68" 48" 19501bs. Complete flexibility is
S 96" 64" 64" 24501bs. provided by selec·
180" 96" 54" 3500lbs. tion of flow rate,
T 96" 80" 54" 2100lbs. operating pressure,
0 96" 76" 76 " 2900lbs. electrical input.
NEMA class, miscel·
S laneous options and
instrumentation
T
0
* Does not includ e the weight of Fuller's Earth
www.tech-equipments.comlsales@tech-equipments.com 727
