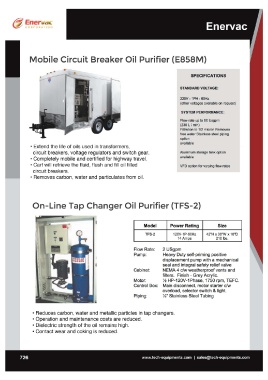

P. 732
Mobile Circuit Breaker Oil Purifier (E858M)
• Extend the life of oils used in transformers, SPECIFICATIONS
circuit breakers, voltage regulators and switch gear.
STANDARD VOLTAGE:
• Completely mobile and certified for highway travel.
• Cart will retrieve the fluid, flush and fill oil filled 220V - 1PH - 60Hz
(other voltages available on request)
circuit breakers.
• Removes carbon, water and particulates from oil. SYSTEM PERFORMANCE:
Flow rate up to 60 Usgpm
(230 LI min)
Filtration to 1/2 micron Removes
free water Stainless steel piping
option
ava ilable
Aluminum storage tank option
available
VFD option for varying flow rates
On-Line Tap Changer Oil Purifier (TFS-2)
Model Power Rating Size
TFS-2 120V-1P-60Hz 42"H x 30"W x 10"D
14 Amps 2101bs.
Flow Rate: 2 USgpm
Pump: Heavy Duty self-priming positive
displacement pump with a mechanical
Cabinet: seal and integral safety rel ief valve
Motor: NEMA 4 c/w weatherproof vents and
Control Box: filters. Finish - Grey Acrylic.
Piping:
% HP-120V-1 Phase, 1750 rpm, TEFC.
Main disconnect, motor starter c/w
overload, selector switch & light.
%" Stainless Steel Tubing
• Reduces carbon, water and metallic particles in tap changers.
• Operation and maintenance costs are reduced.
• Dielectric strength of the oil remains high.
• Contact wear and coking is reduced.
726 www.tech-equipments.comlsales@tech-equipments.com
