P. 742

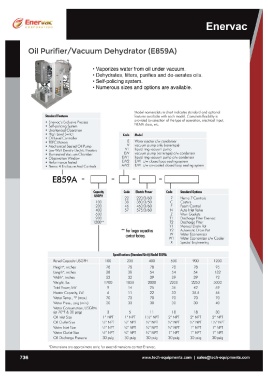

Oil Purifier/Vacuum Dehydrator (E859A)
• Vaporizes water from oil under vacuum.
• Dehydrates, filters, purifies and de-aerates oils.
• Self-policing system.
• Numerous sizes and options are available.
Standard Features Model nomenclature chari indicates standard and optional
features available with each model. Complete flexibility is
• Enervac's Exclusive Process provided by seledion of the type of operation, eledrical input,
• Self-policing System NEMA class, etc.
• Unattended Operation
• High Level Switch Code Model
• Oil Level Controller
• TEFC Motors E Water ejedor C/W con denser
• Mechanical Sealed Oil Pump
• Low Watt Density Electric Heaters V vacuum pump only (vane type)
• Illuminated Vacuum Chamber Vl liquid ring vacuum pump
• Observation Window EN
• Performance Tested ENl vacuum pump (vane type) C/W condenser
• Nema 4 Enclosure And Controls EN2
A/V2 liquid ring vacuum pump c/w condenser
ENl C/W closed loop sealing system
ENl C/W air-cooled closed loop sealing system
Capacity Code Electric Power Code Standard Options
USGPH
22 220/3/60 7 Nema 7 Controls
100 38 380/3/50 C Casters
200 46 460/3/60 F Foam Control
400 57 575/3/60 N Auto Inlet Valve
600 Z Viton Gaskets
900 ** For larger copacities Tl Discharge Filte r Enervac
1200" contact factory. T2 Discharge Fil ter
Yl Manual Drain Pot
Y2 Automatic Drain Pot
W Water Economizer
Wl Water Econom izer c/w Cooler
X Special Engineering
Specifications (Standard Unit) Model E859A
Rated Capacity USGPH 100 200 400 600 900 1200
Height', inches 78 78 78 78 78 95
Length ' , inches 38 38 54 54 54 132
Width', inches 32 32 39 39 39 72
Weight,lbs 1700 1800 2000 2200 2250 5000
Tota l Power, kW 9 14 25 36 42 69
Heater CapaCity, kW 6 11 22 33 38.5 66
Water Temp., OF (max.) 70 70 70 70 70 70
Water Press., psig (min .) 30 30 30 30 30 40
Water Consumption, USGPM
(at 70° F & 30 psig) 3 5 11 18 18 30
Oil Inlet Size 1" NPT 1" NPT 2" NPT 2" NPT 2" NPT
Oil Outlet Size lH'NPT W ' NPT 1'12" NPT %" NPT %" NPT l W 'NPT
Water Inlet Size lH' NPT %" NPT %" NPT 1" NPT 1" NPT
Water Outlet Size 112" NPT 3/." NPT 3//' NPT 1" NPT 1" NPT 1" NPT
Oil Discharge Pressu re 30 psig 3/." NPT %" NPT 30 psig 30 psig 30 psig
30 psig 30 psig
' Dimensions are approximate only; for exact dimensions cantad Enervac.
736 www.tech-equipments.comlsales@tech-equipments.com
